N1SJV Repeater Information
Both repeaters are solar powered so please be mindful of the batteries at night. Thank you!
146.640 MHz -600 CTCSS: (Encode/Decode) 100.0
Conventional FM

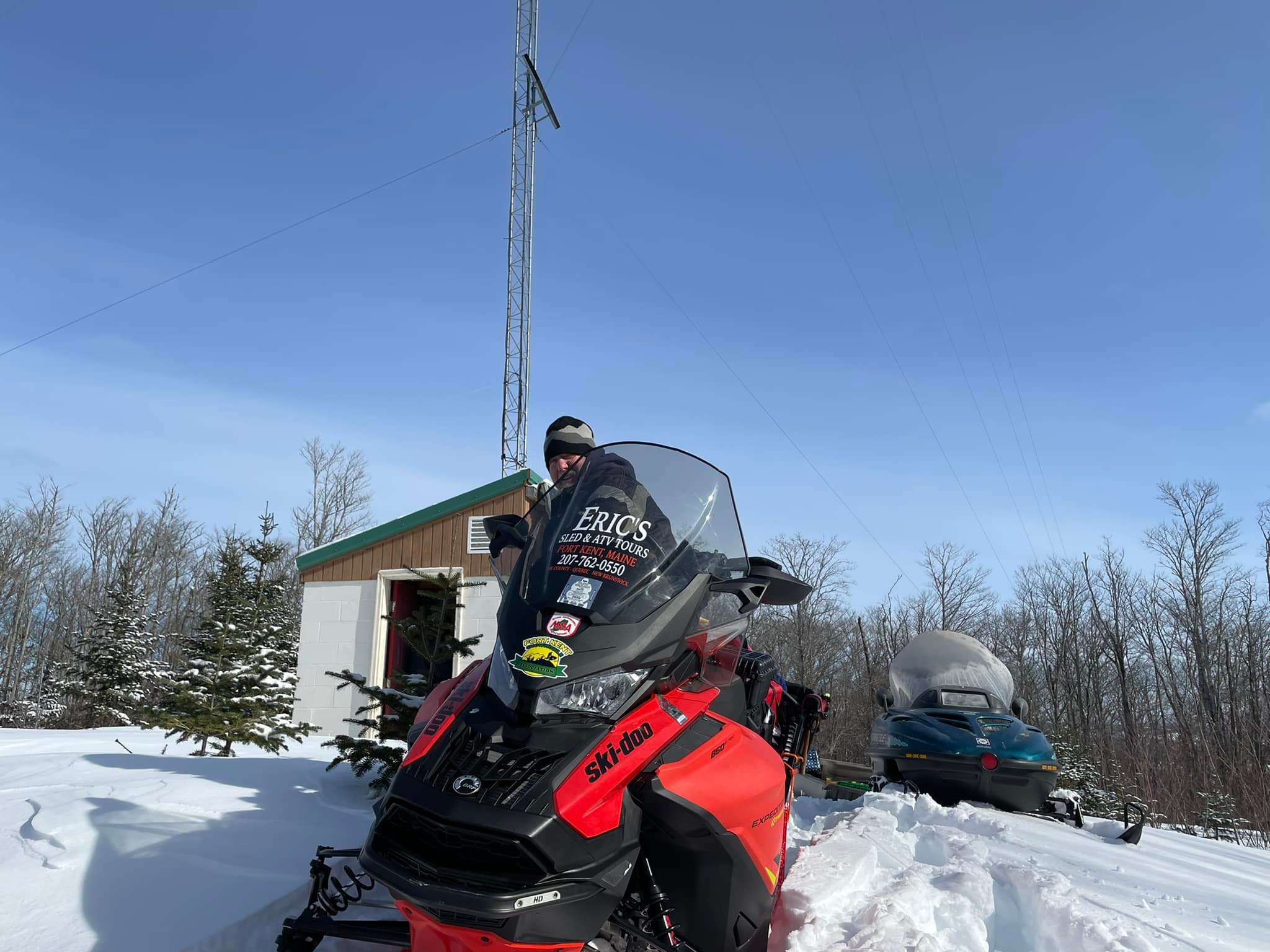

Location: Fort Kent, Maine
Echolink Node: 733919(or search N1SJV)
(temporarily offline)

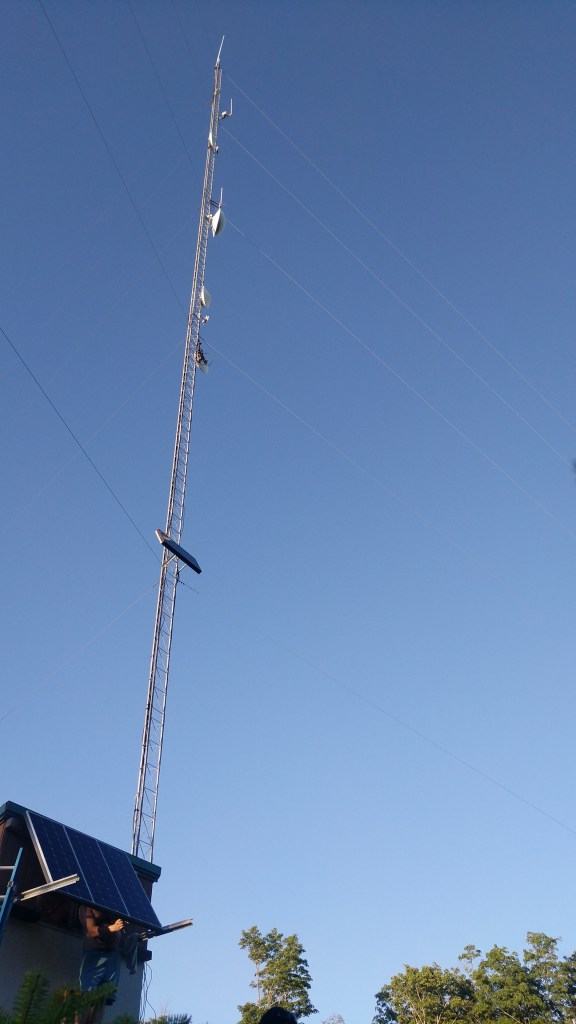

Collinear ‘bazooka’ antenna
~200 feet of 7/8″ Andrews Heliax
Telewave six cavity duplexer

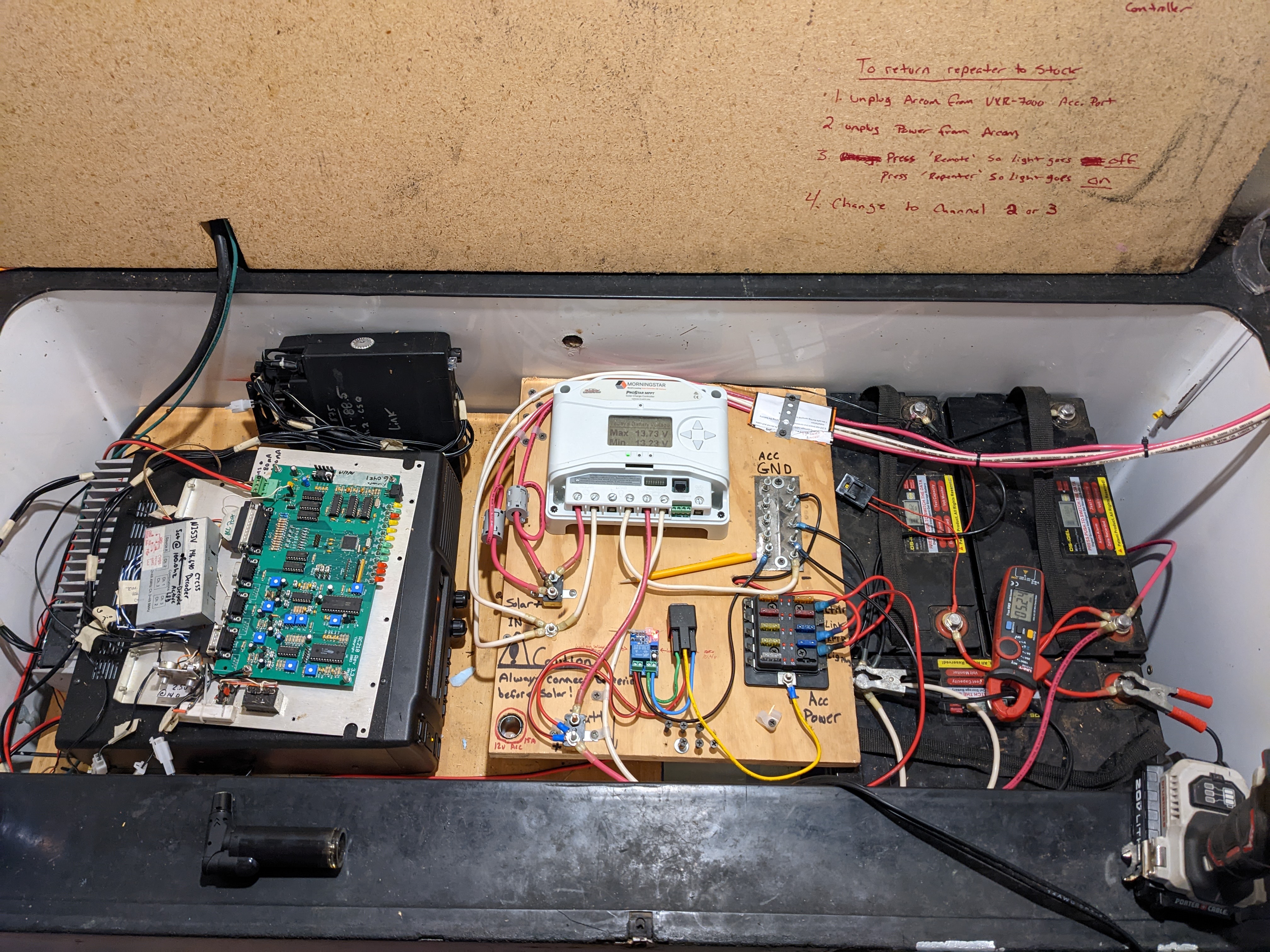

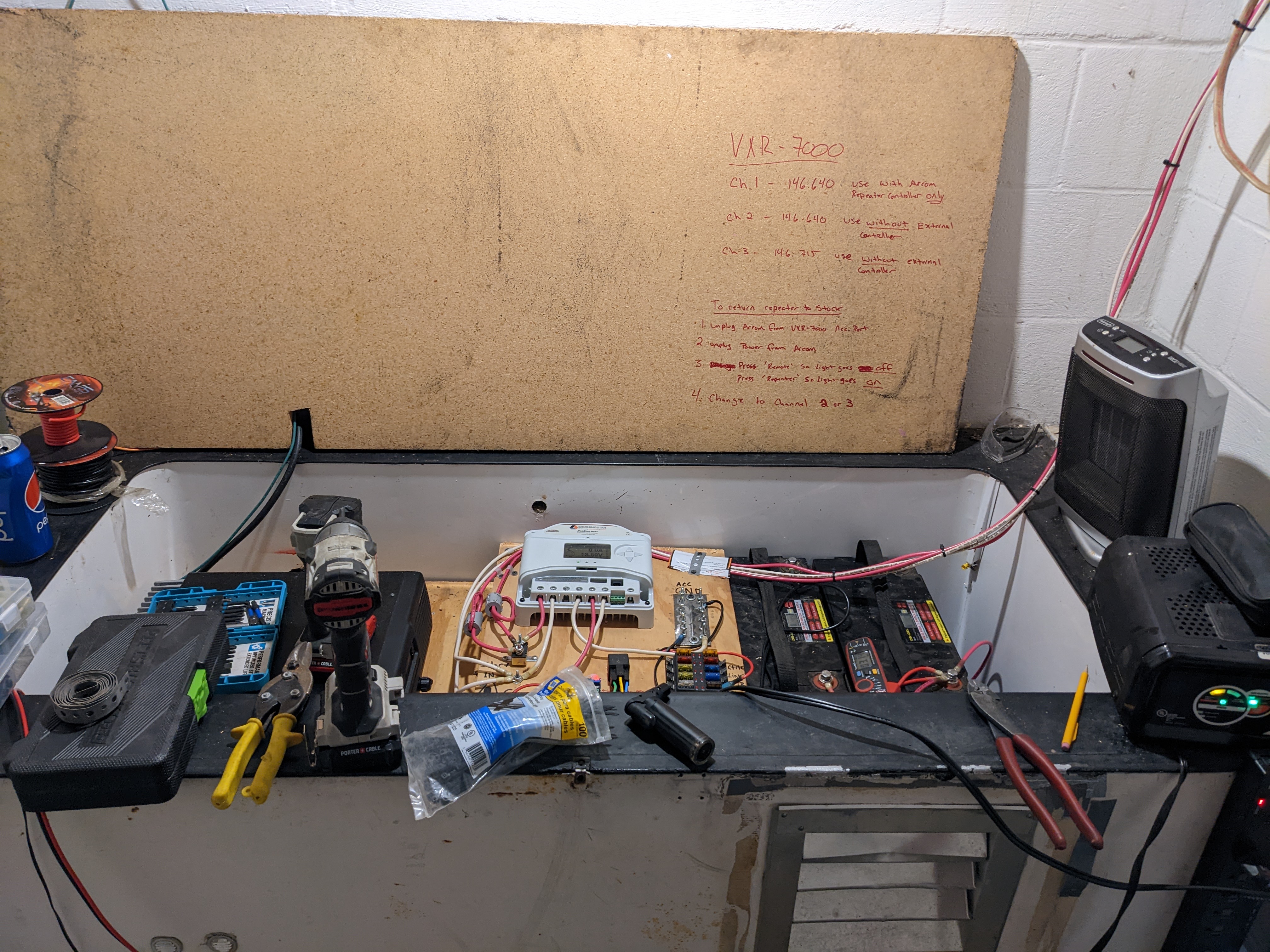

Vertex VXR-7000 repeater

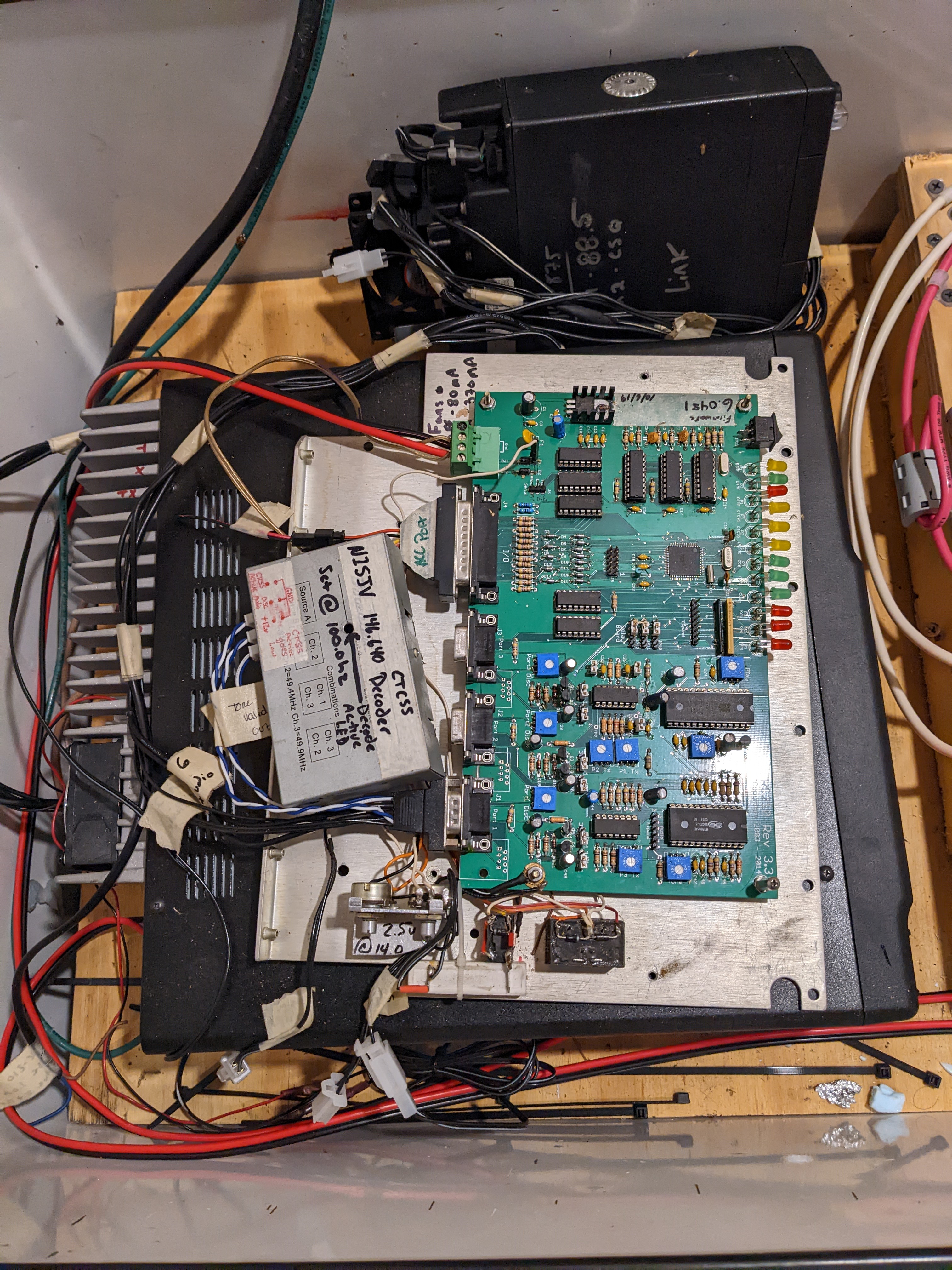

External Arcom repeater controller

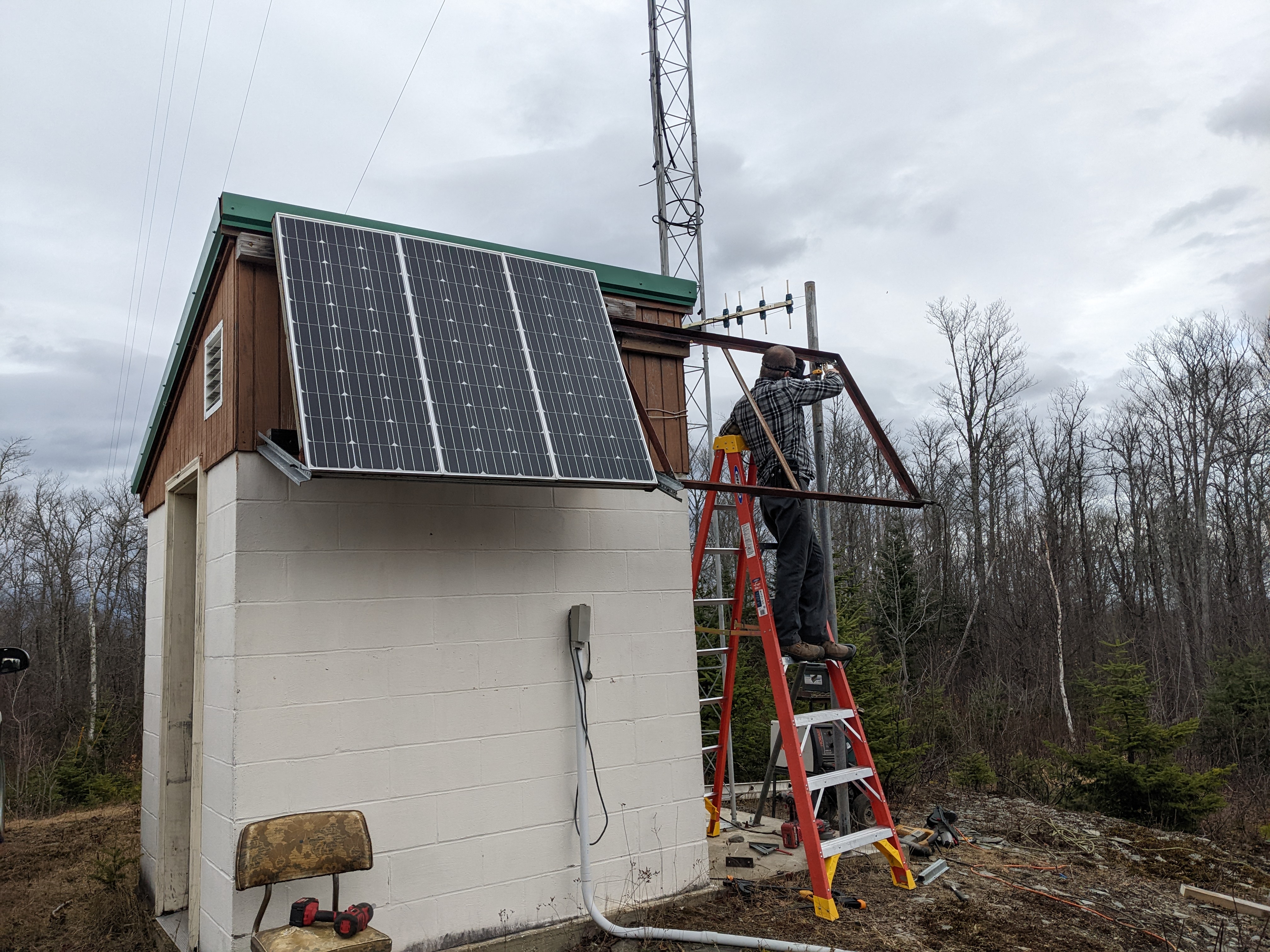

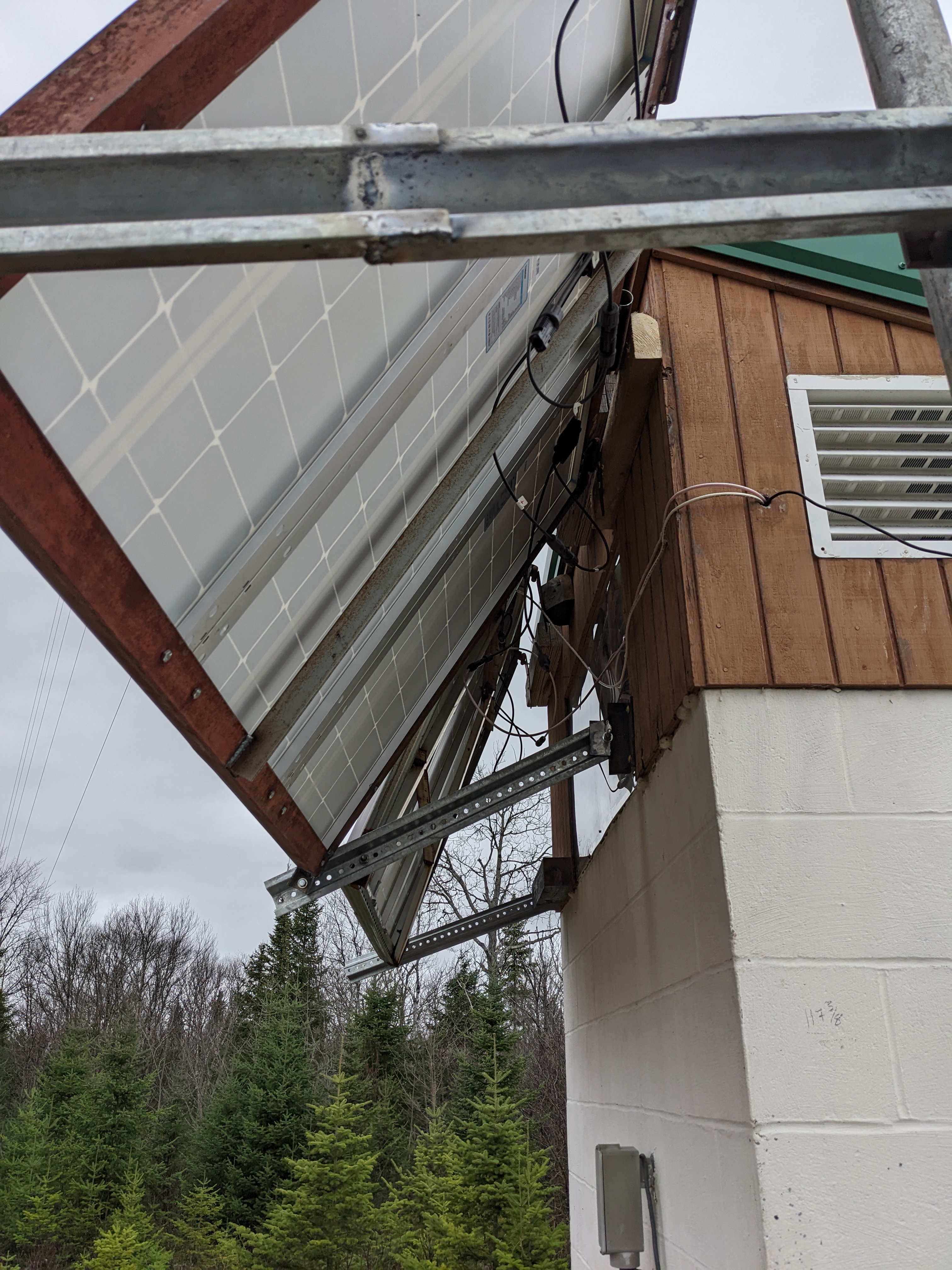

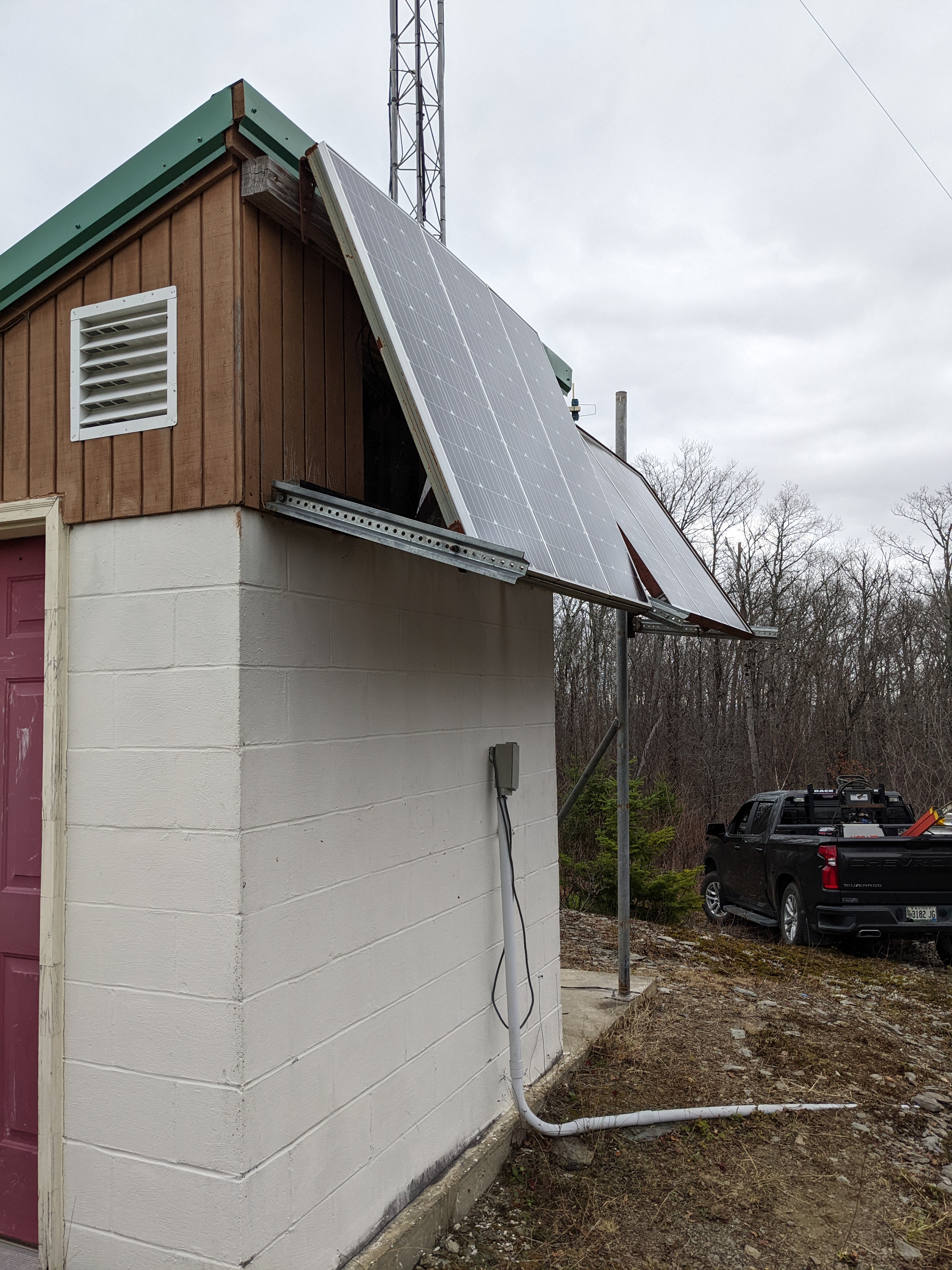

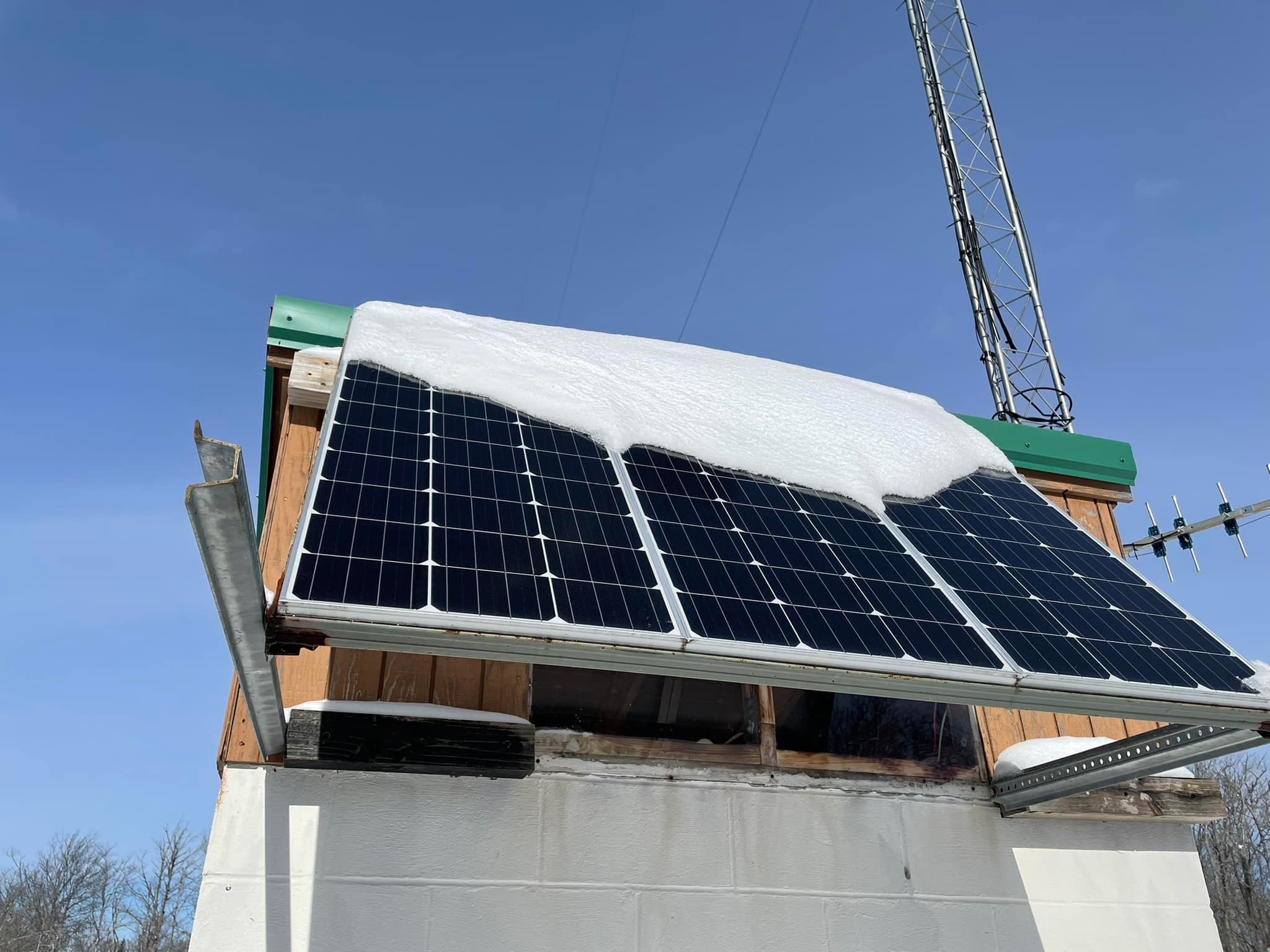

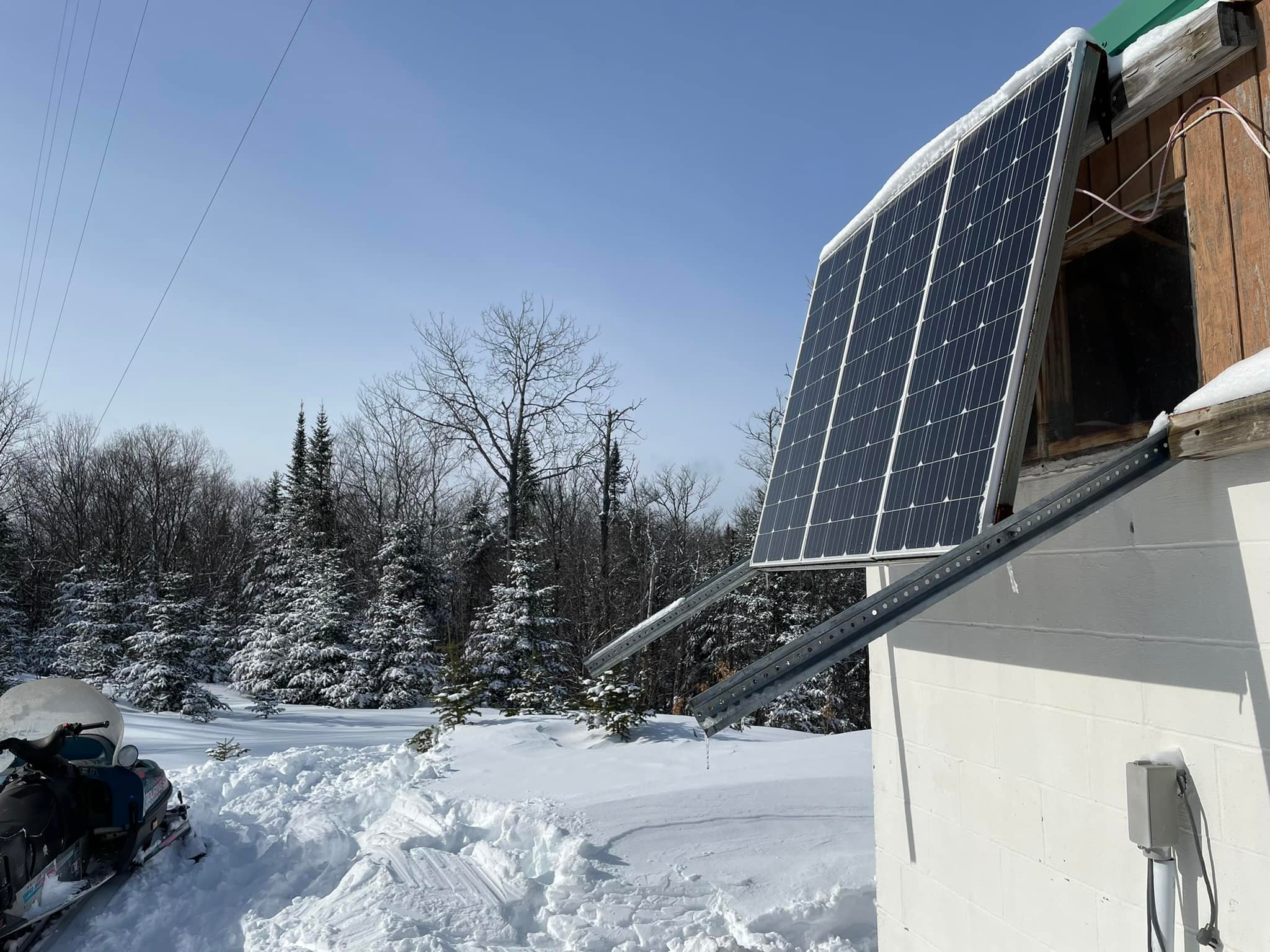

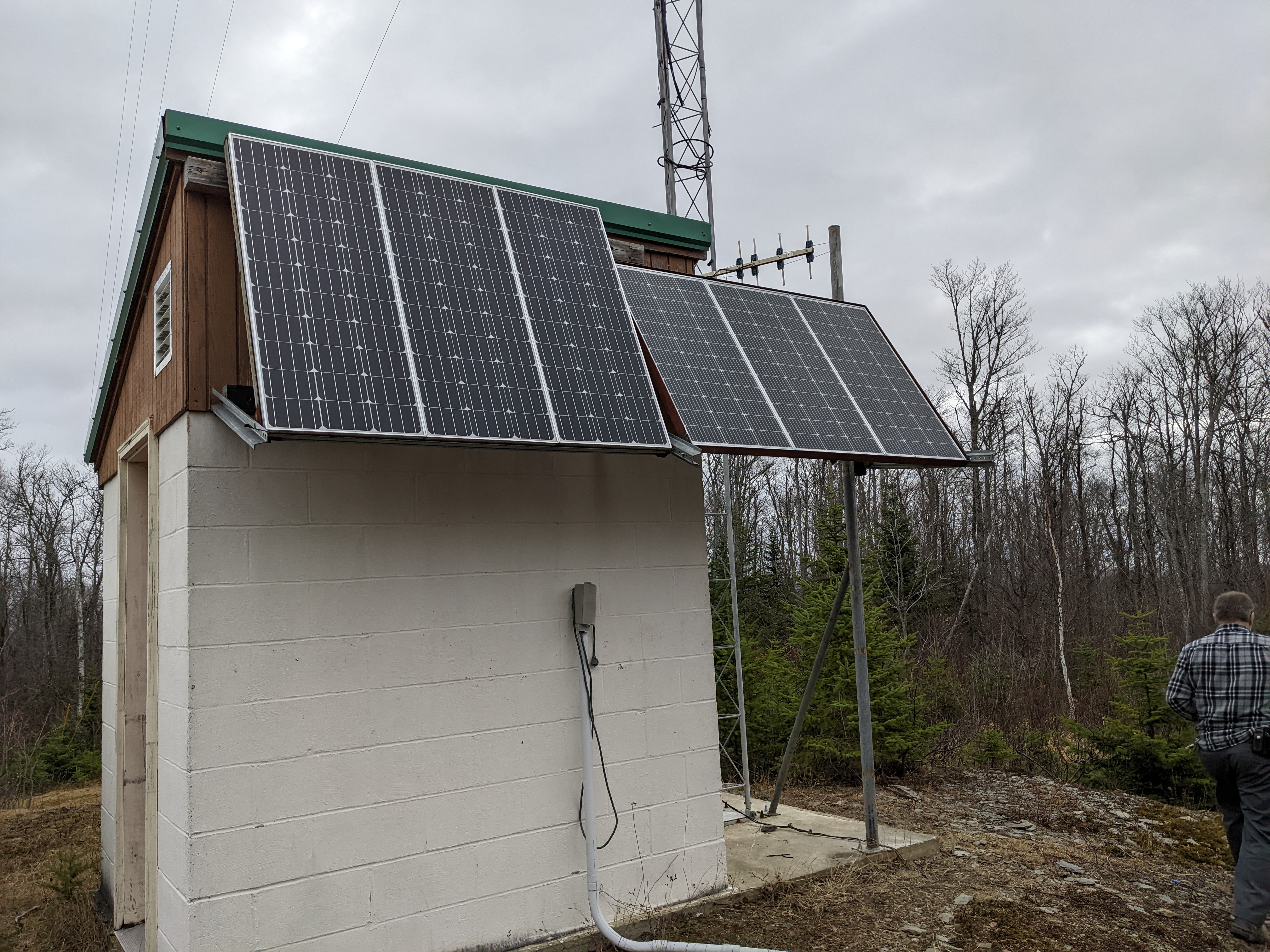

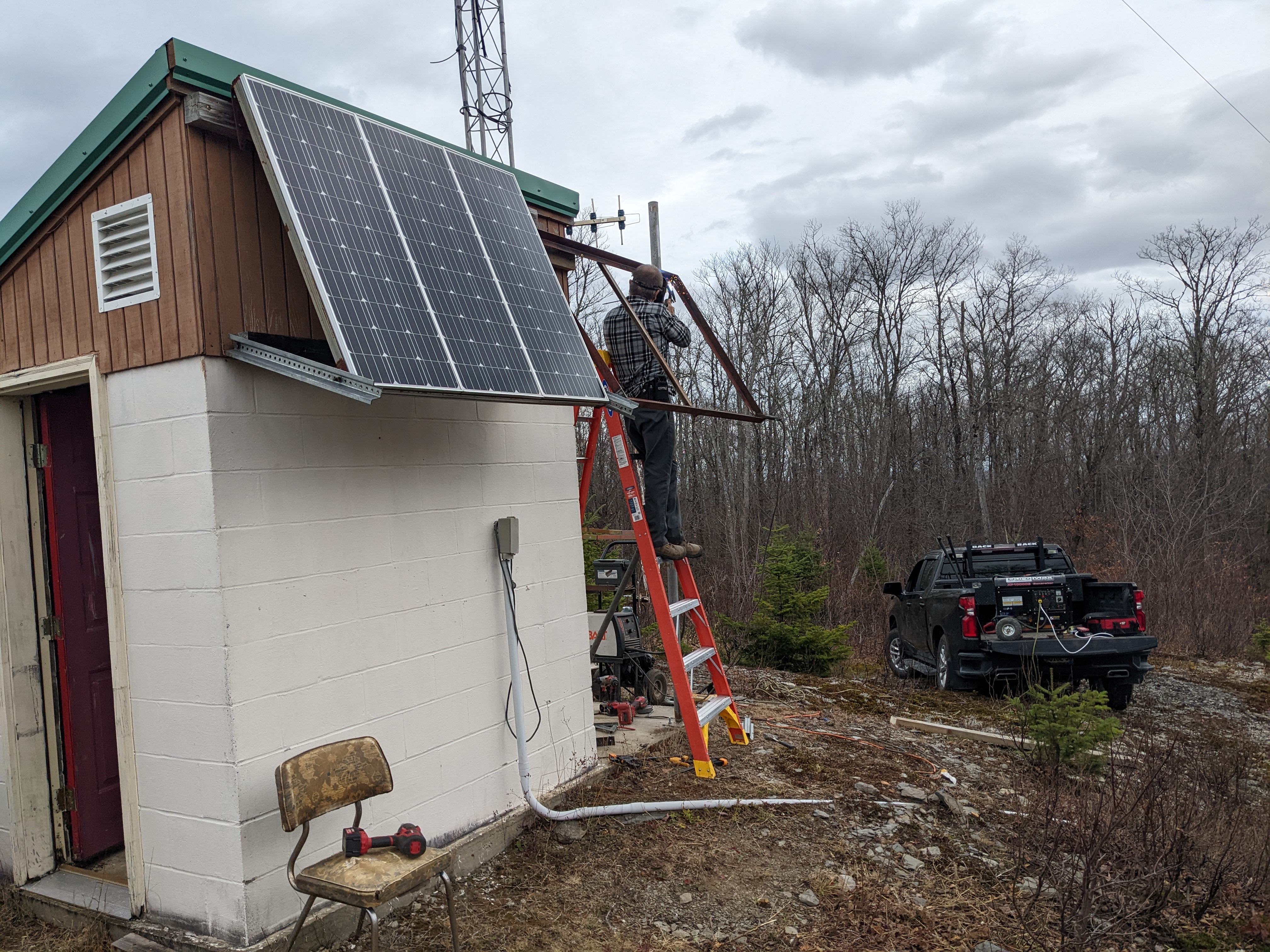

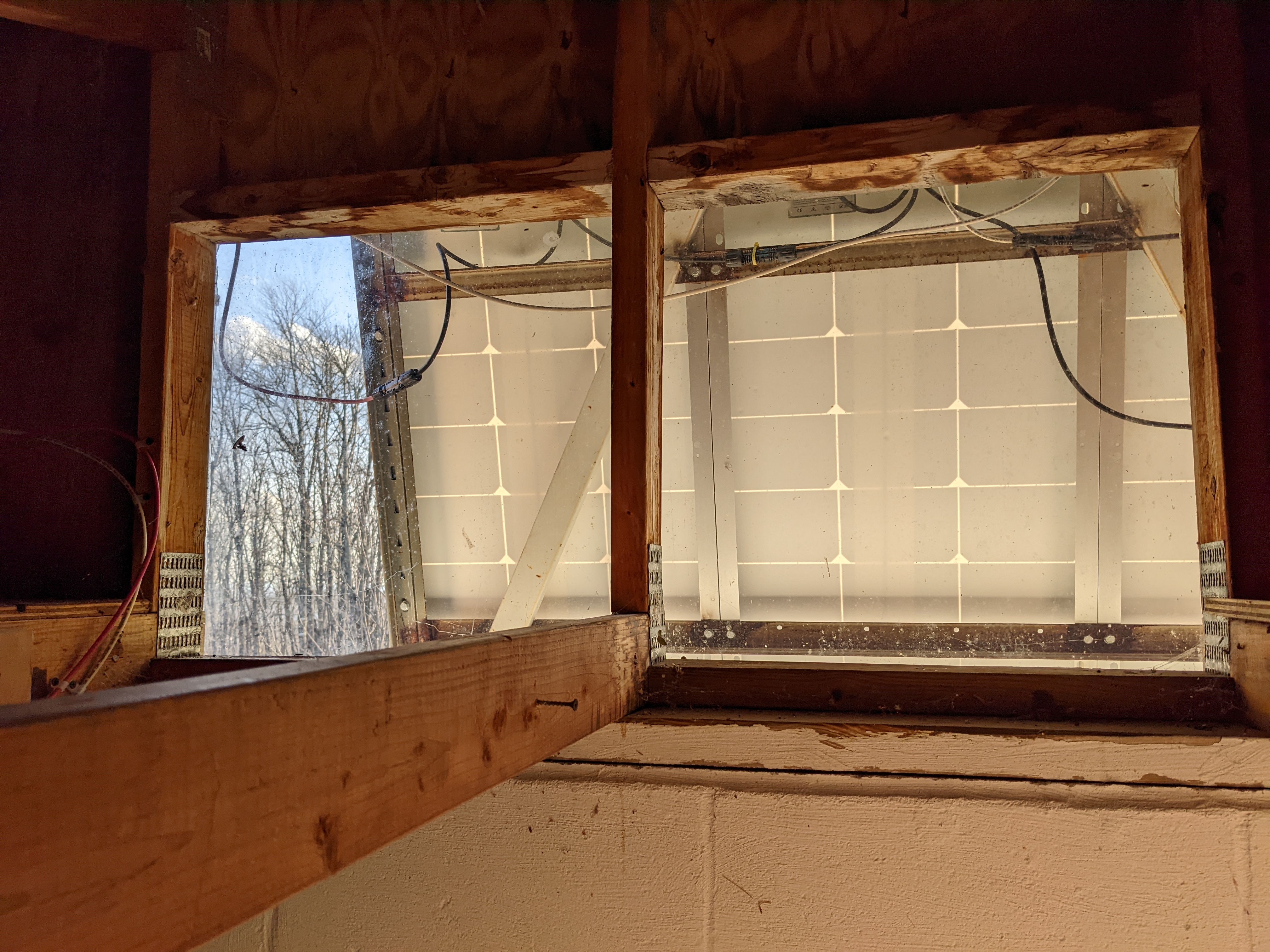

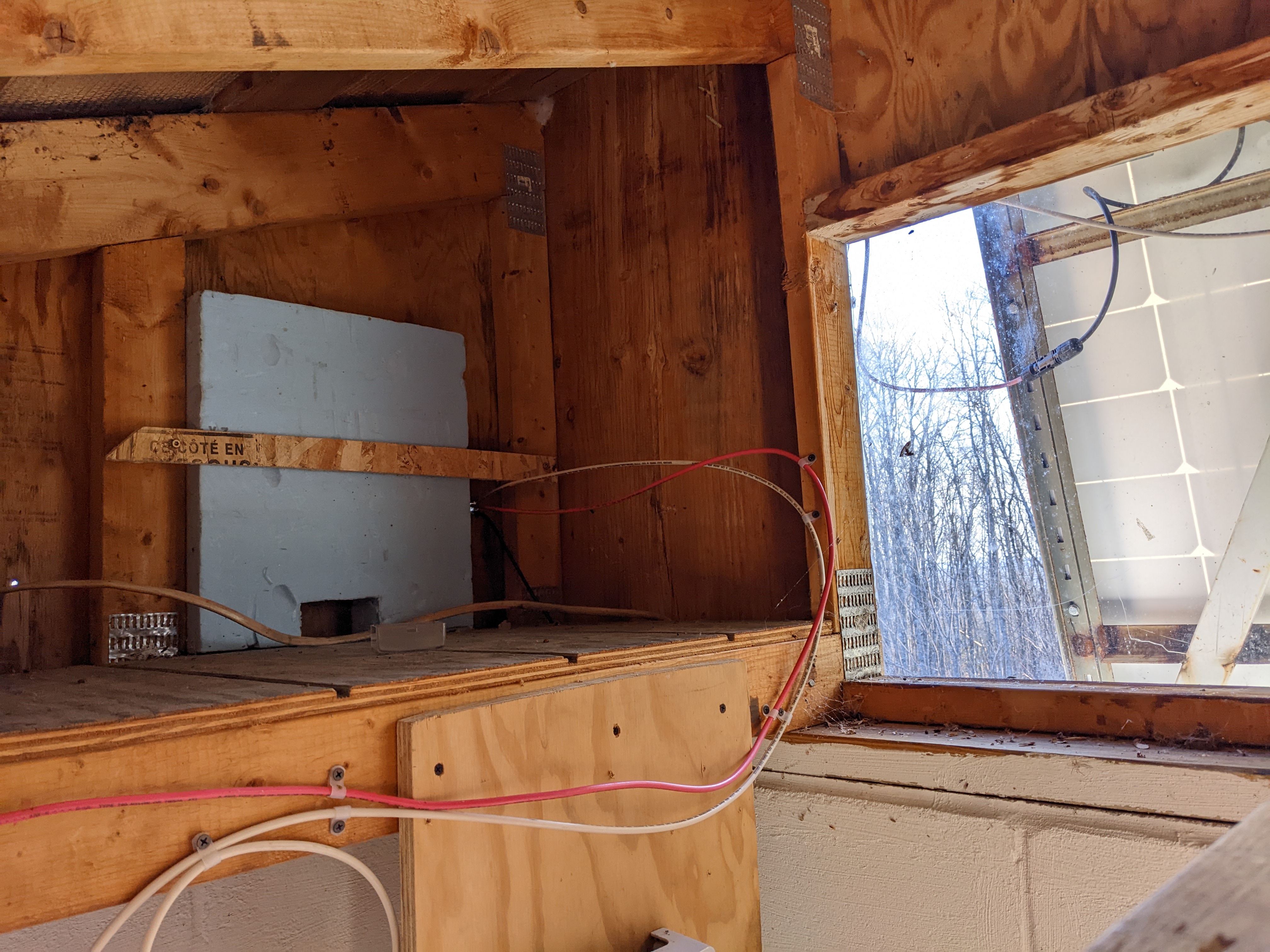

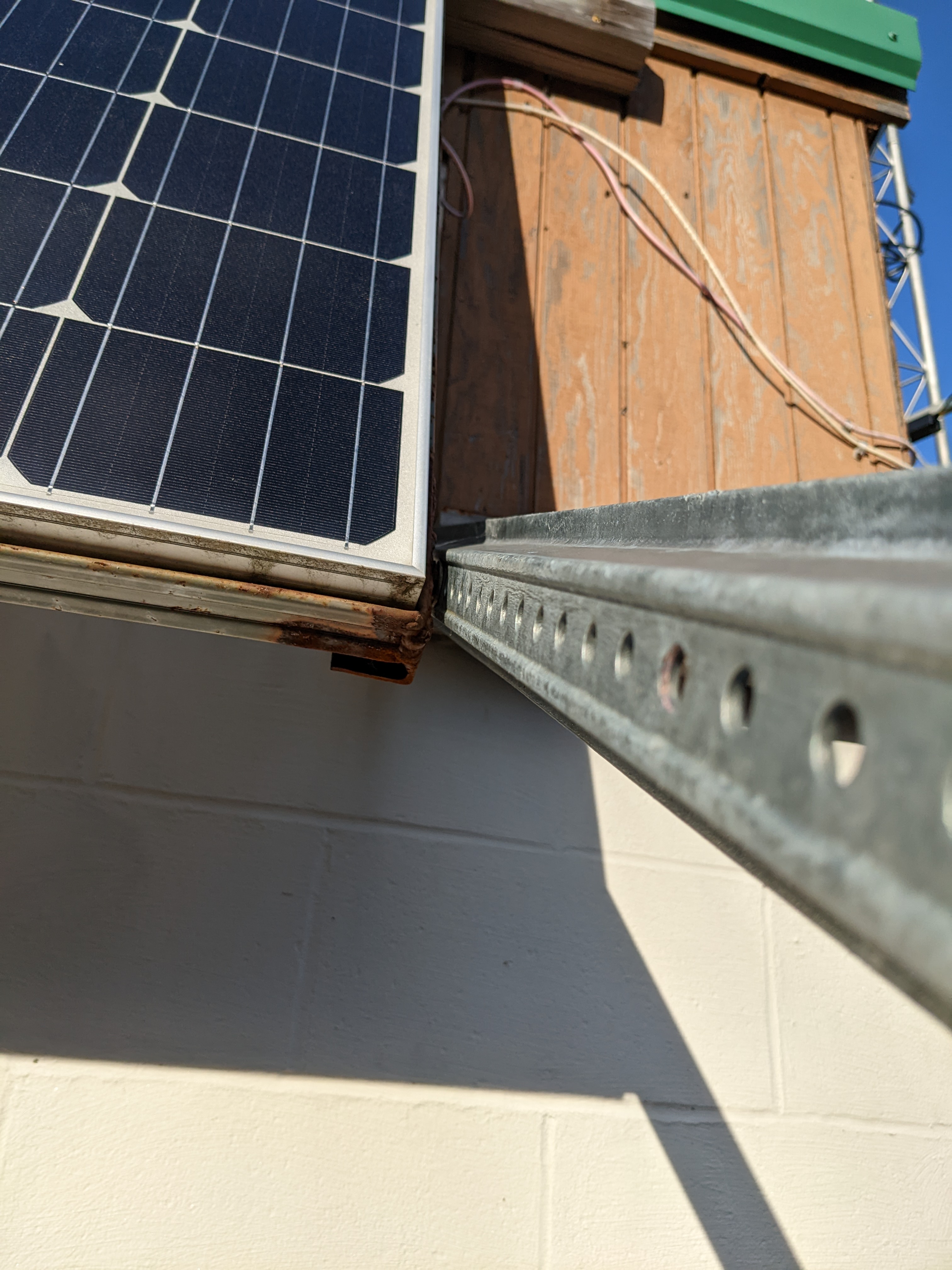

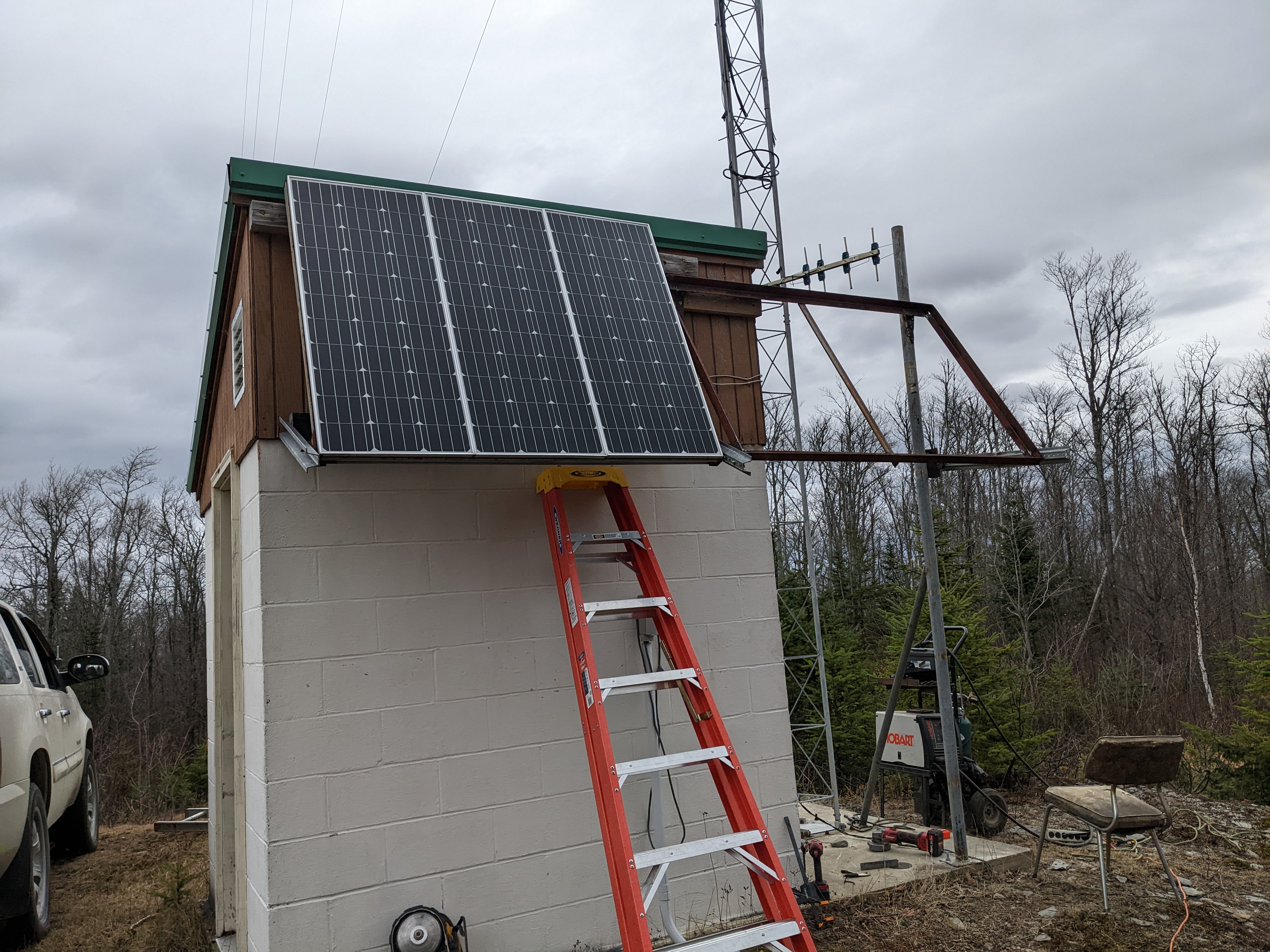

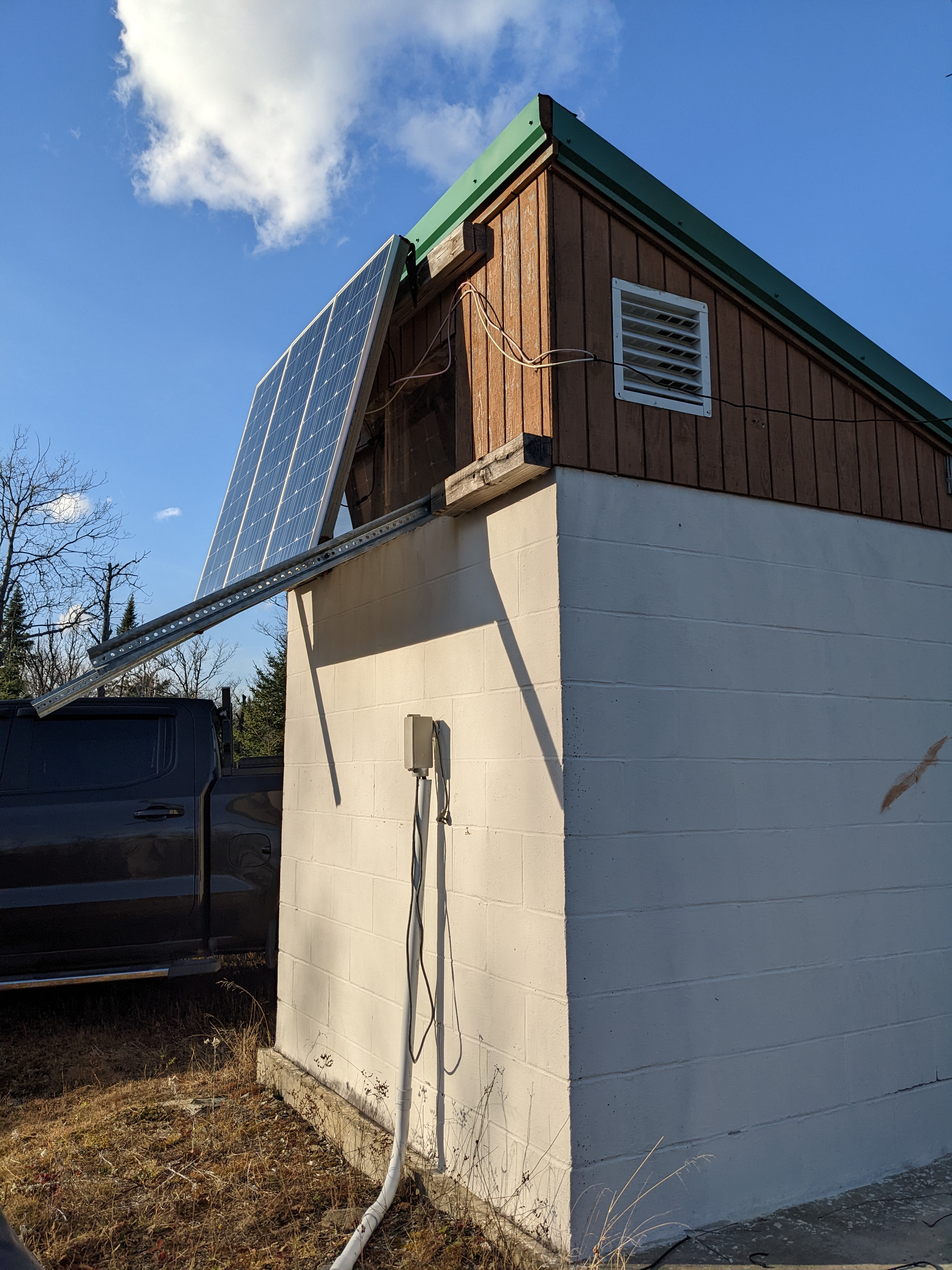

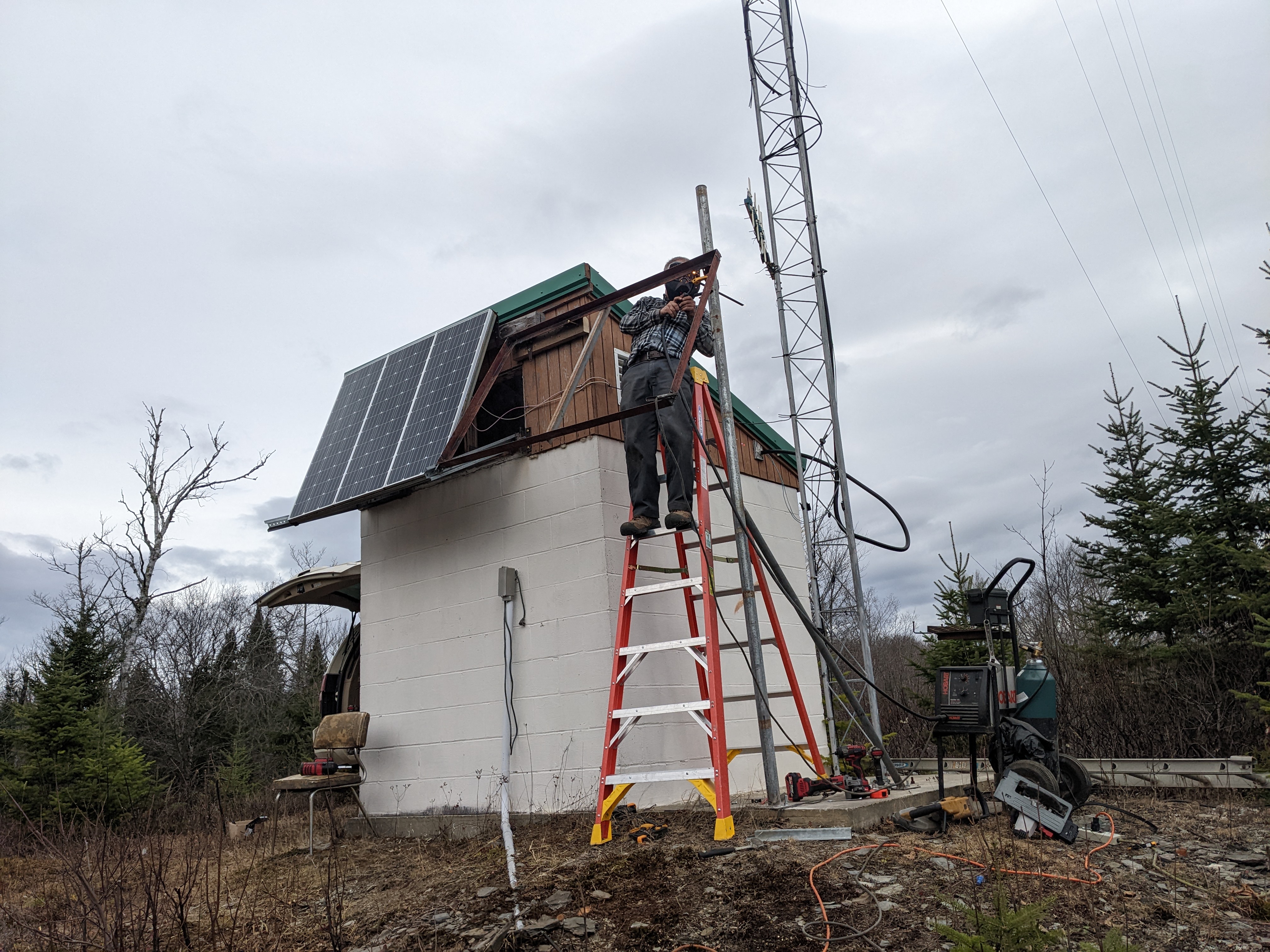

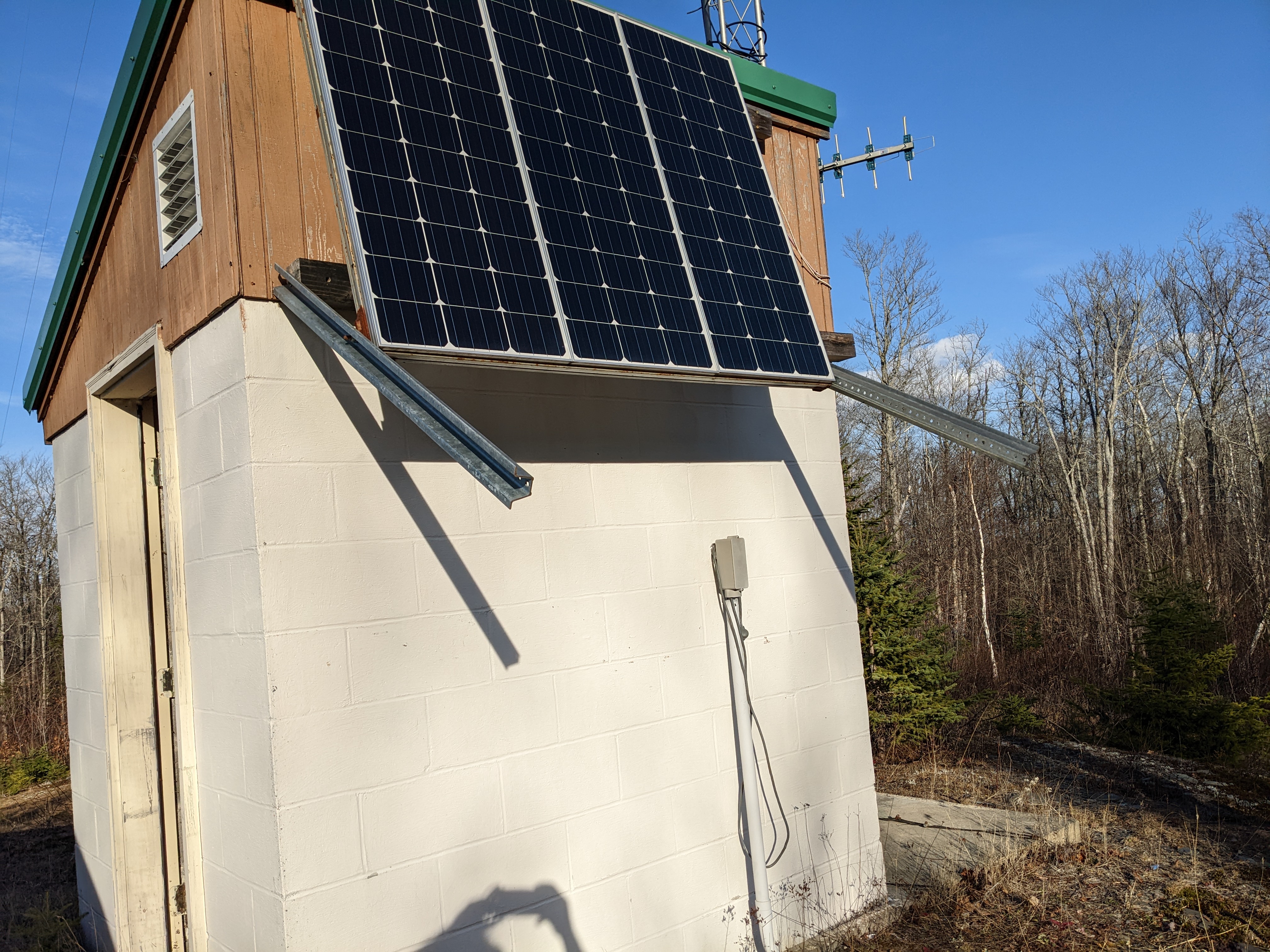

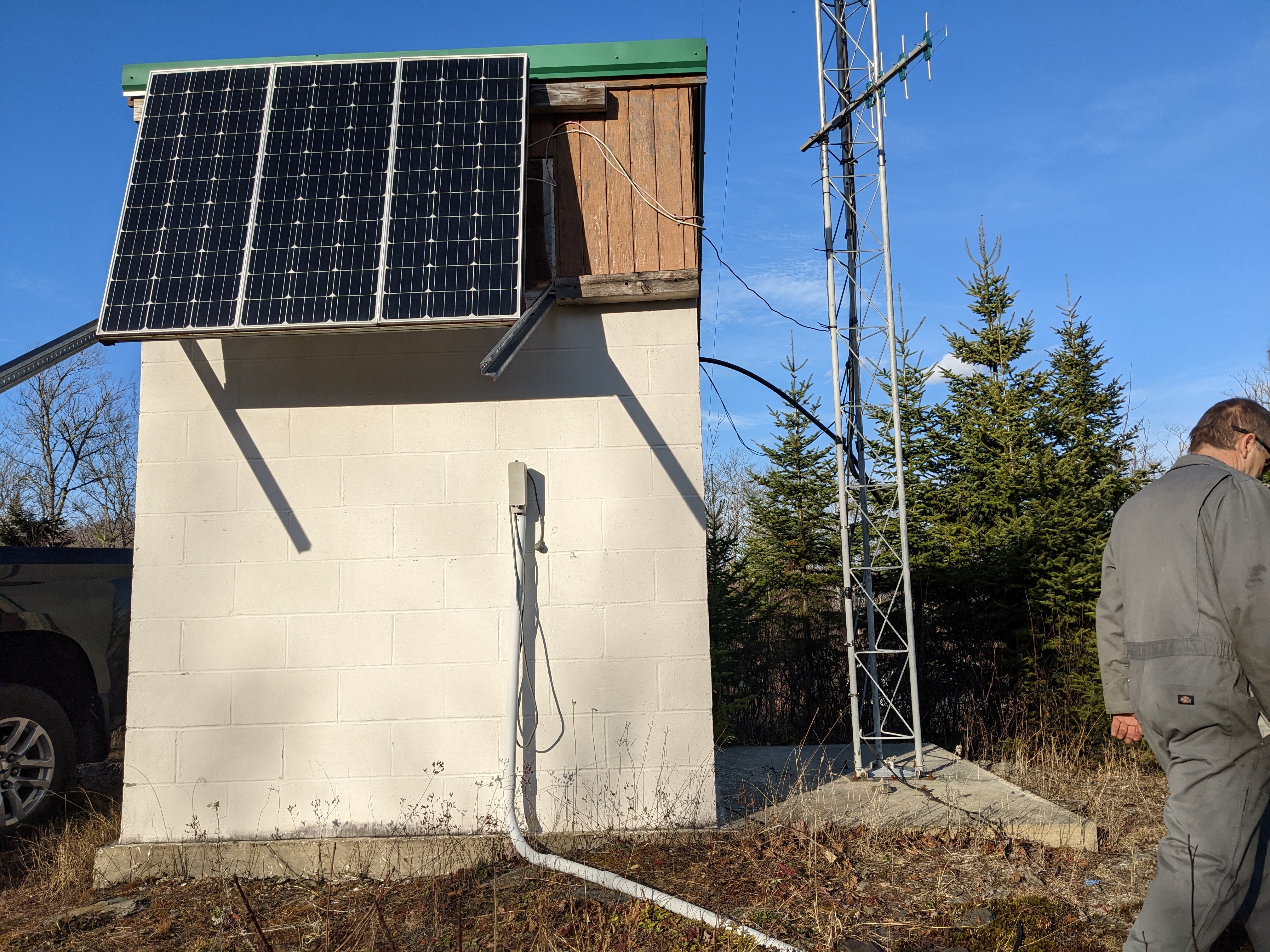

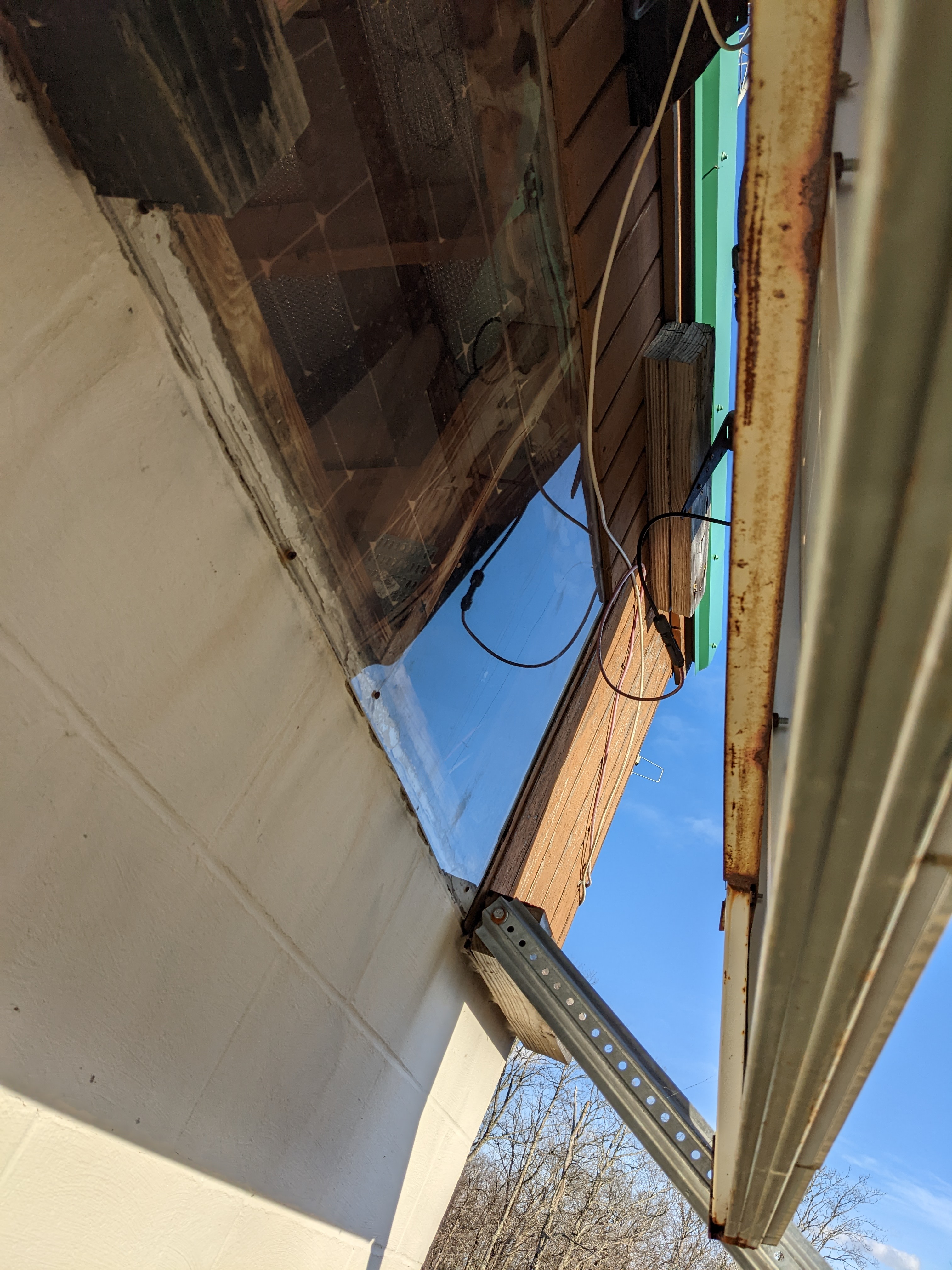

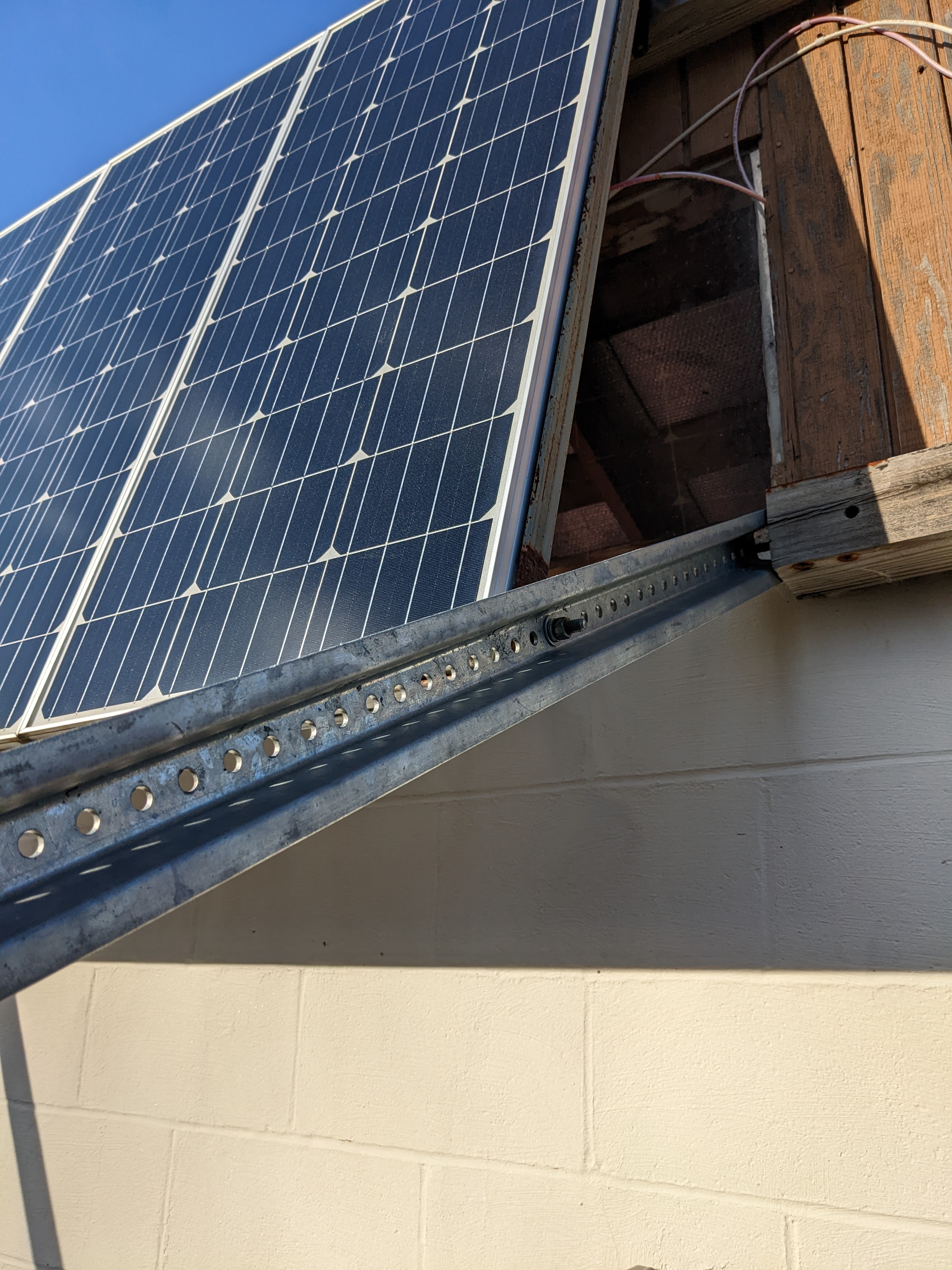

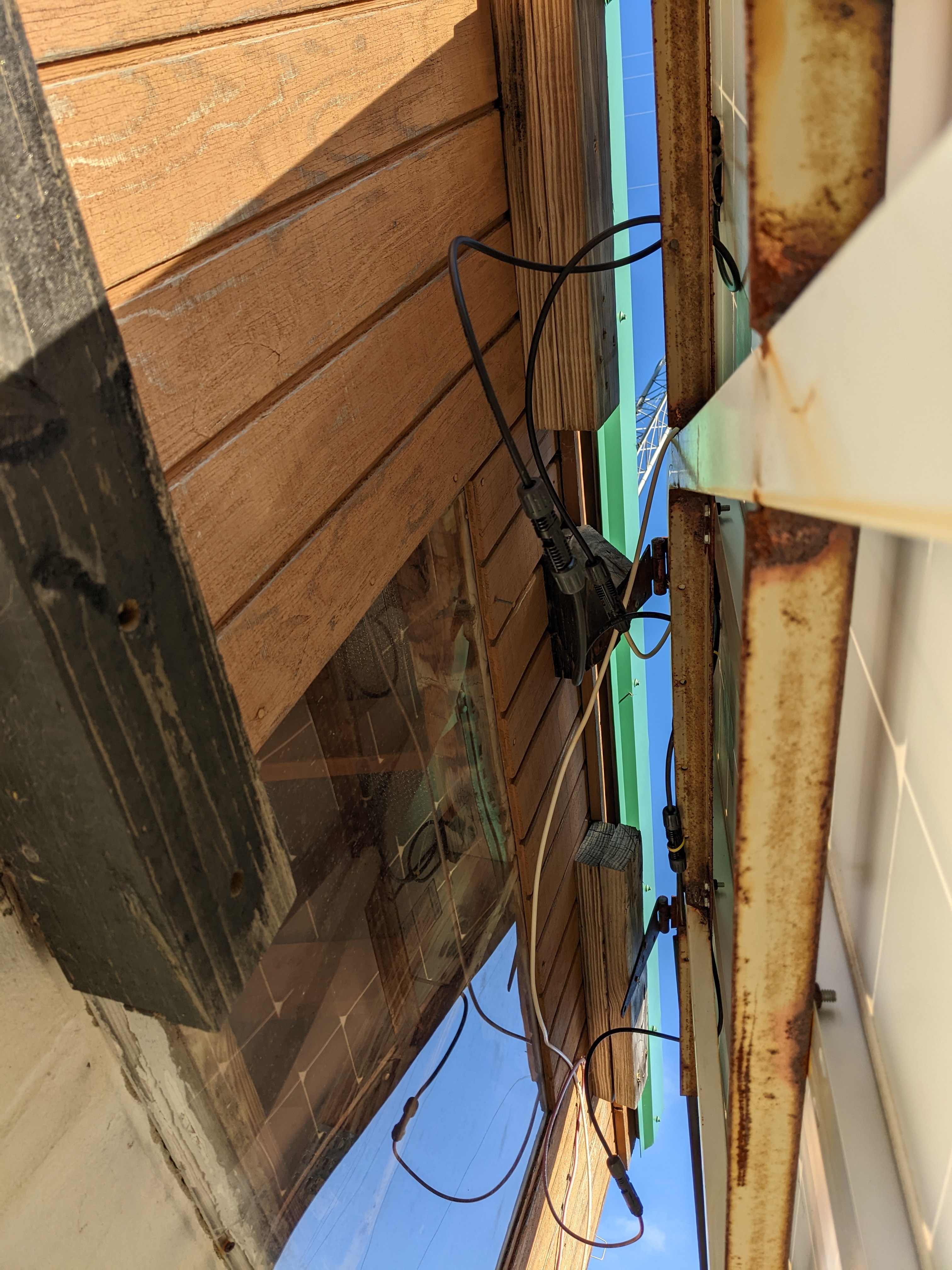

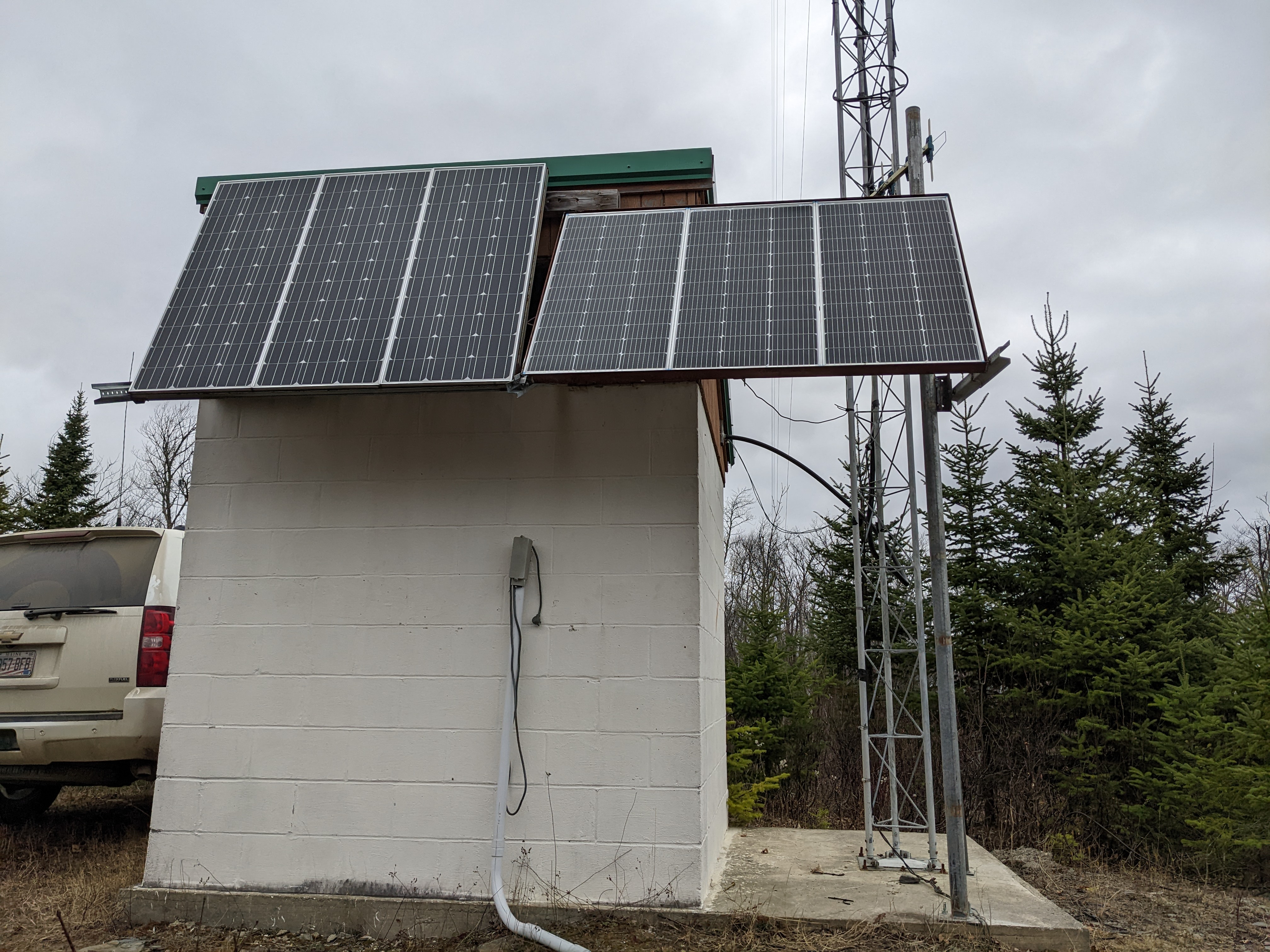

Three 100 watt HQST panels
Three 100 watt Renogy panels
(total 600 watts of solar input)

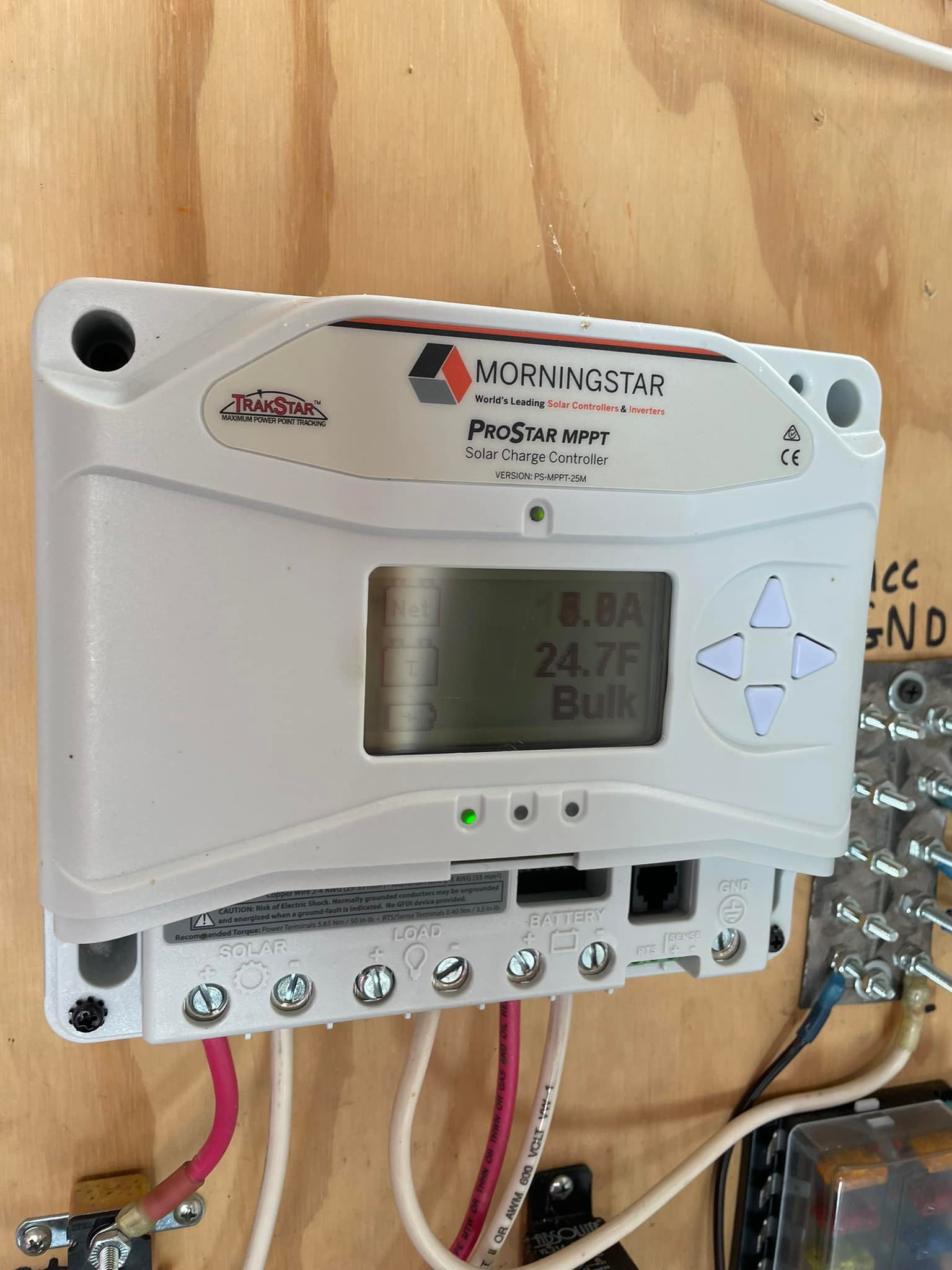

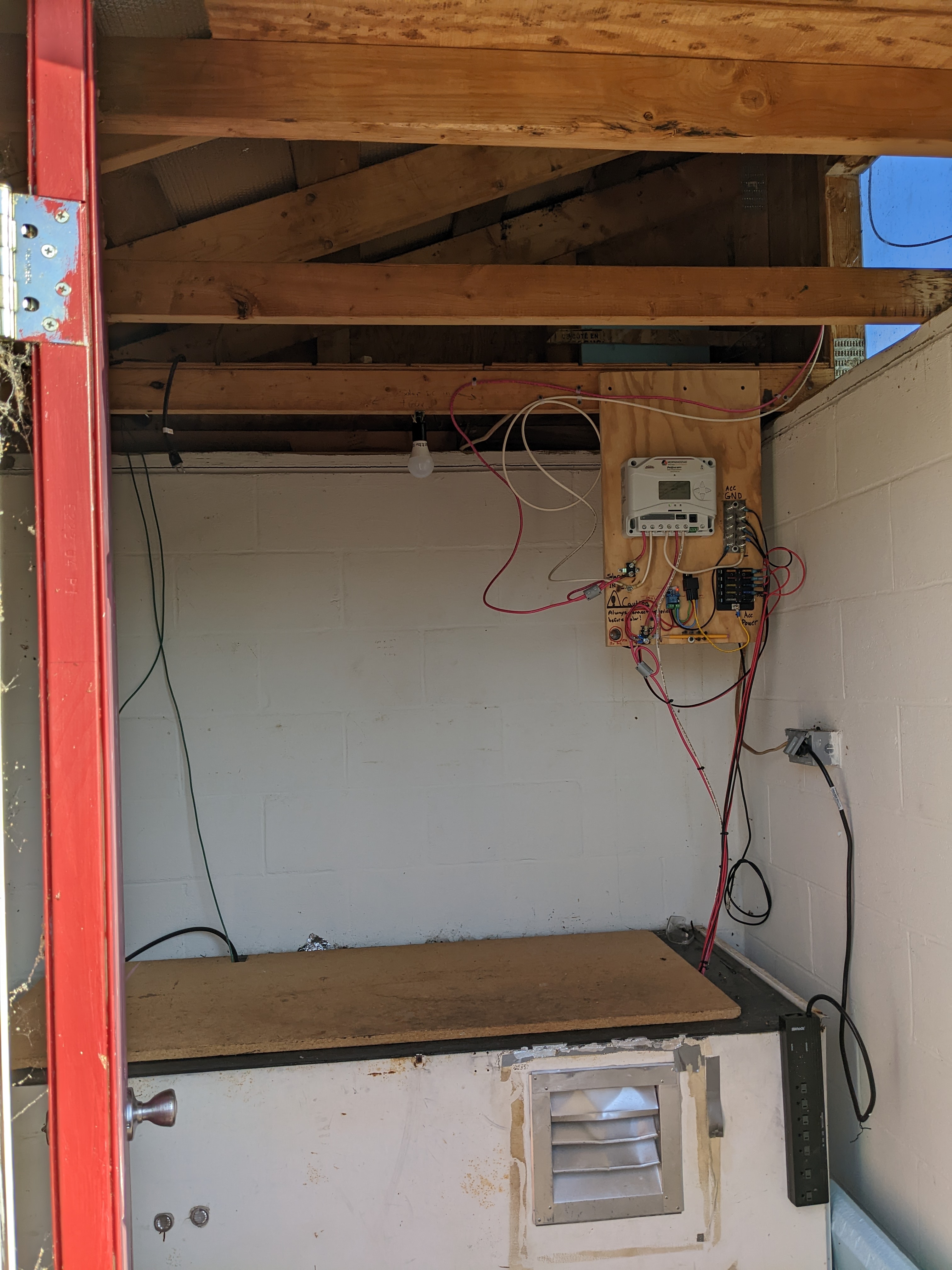

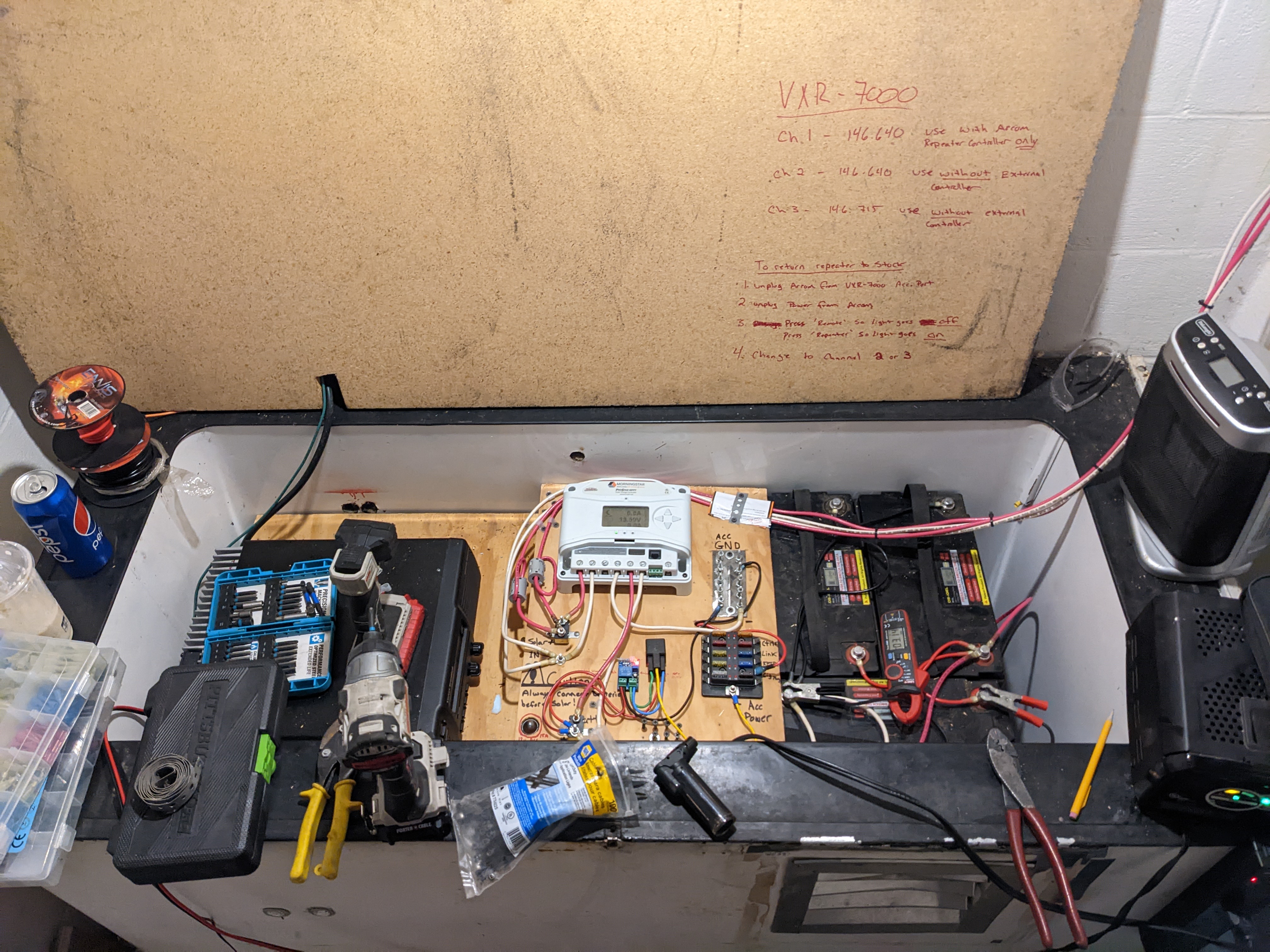

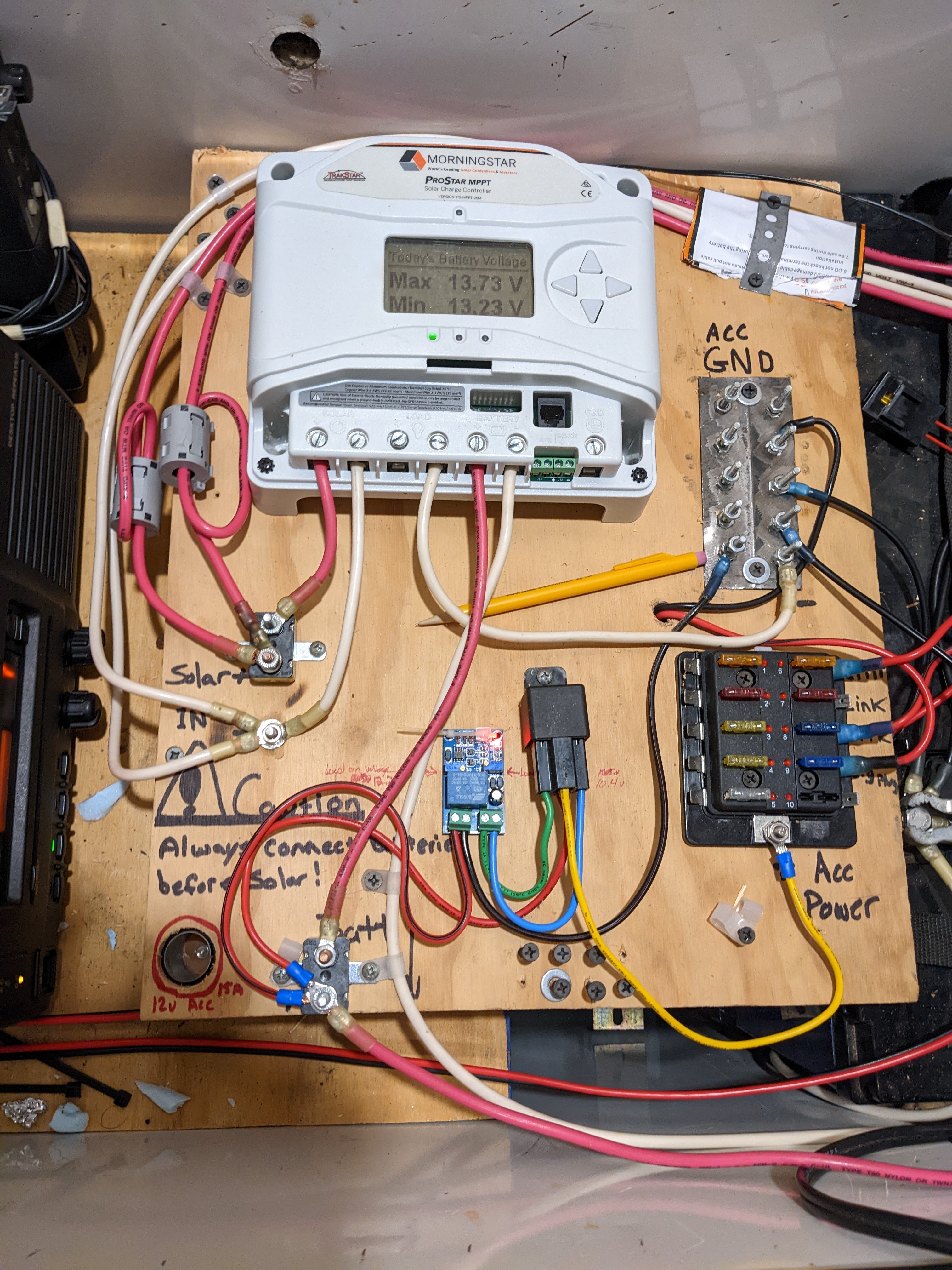

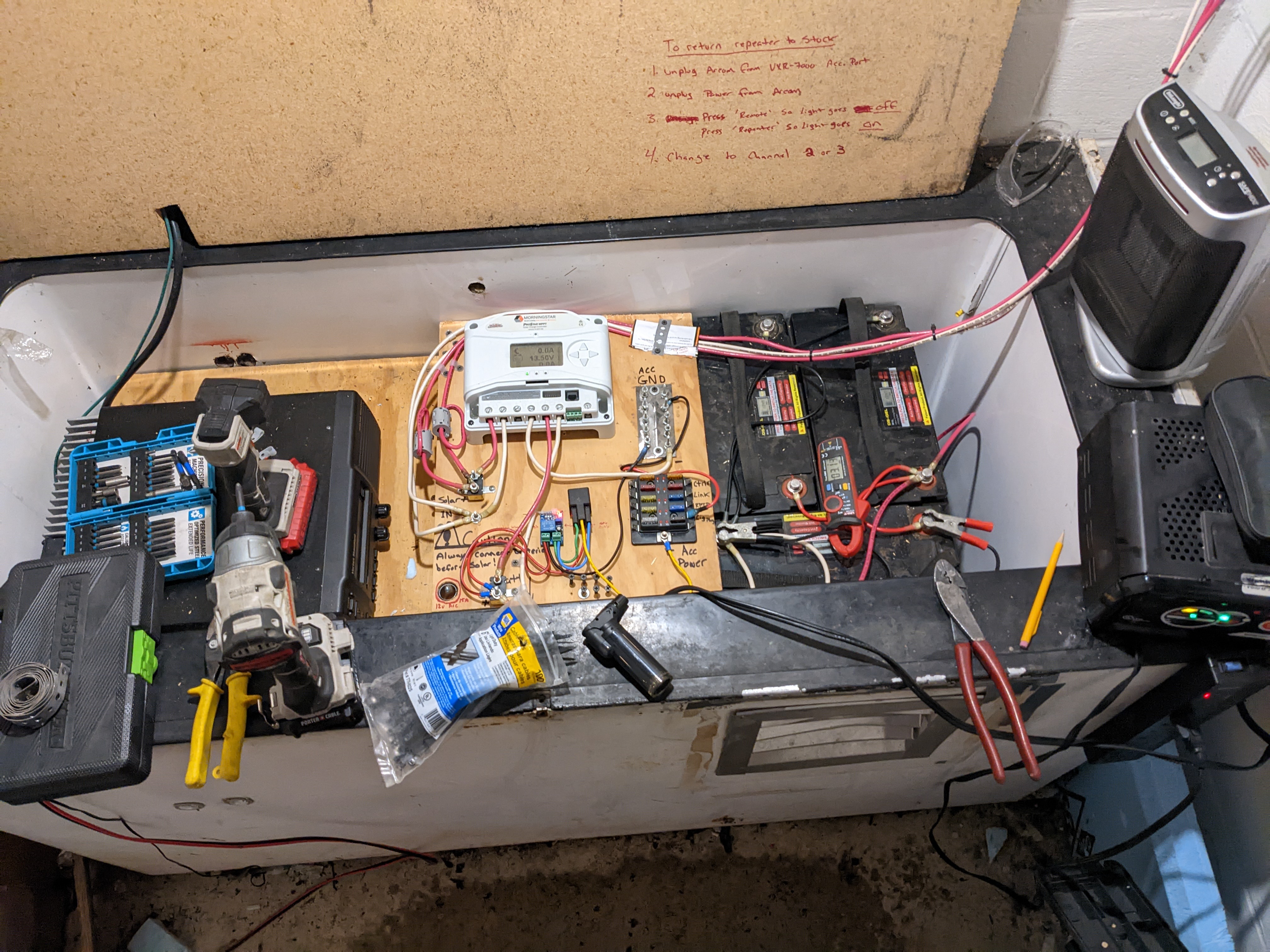

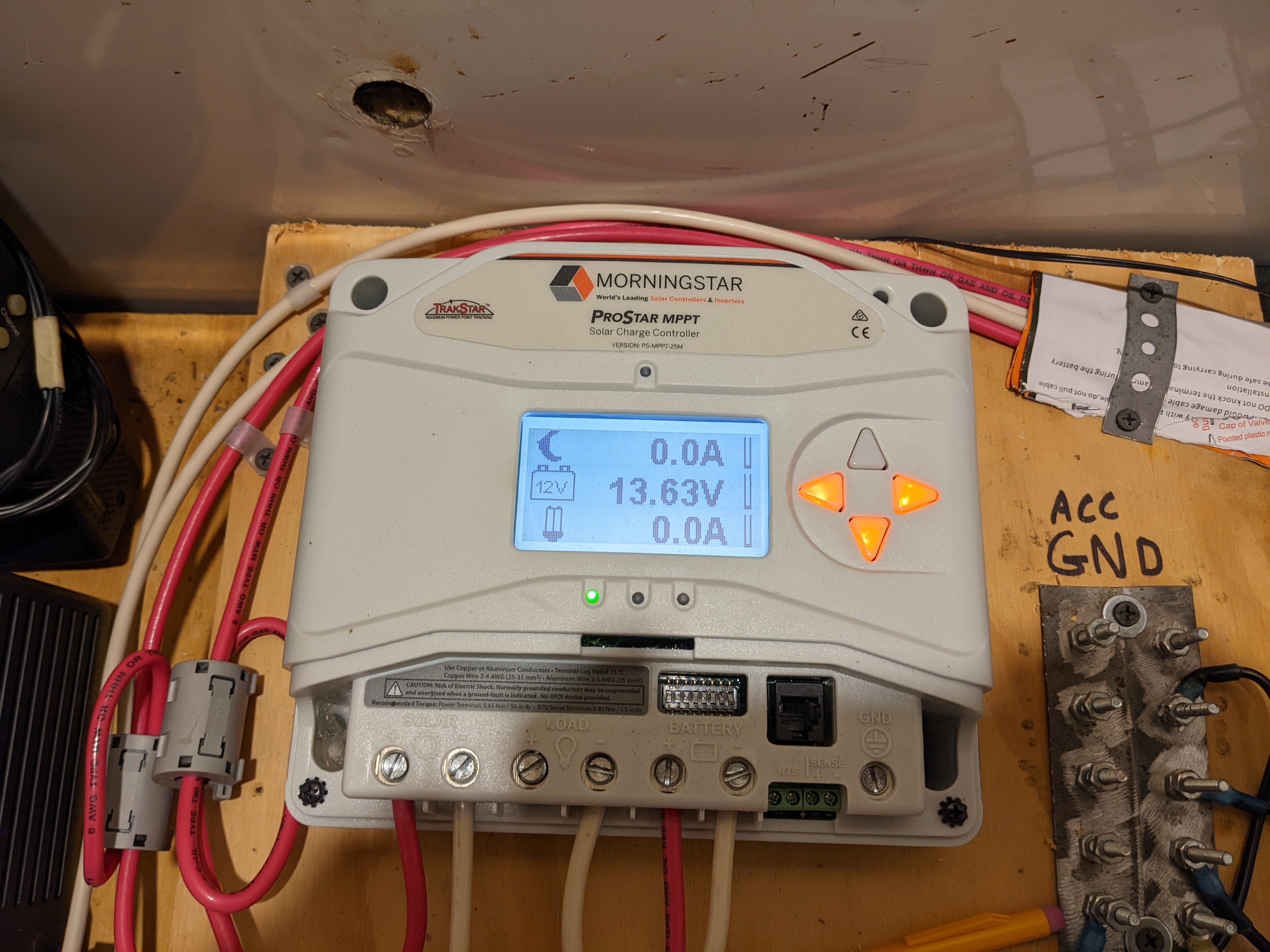

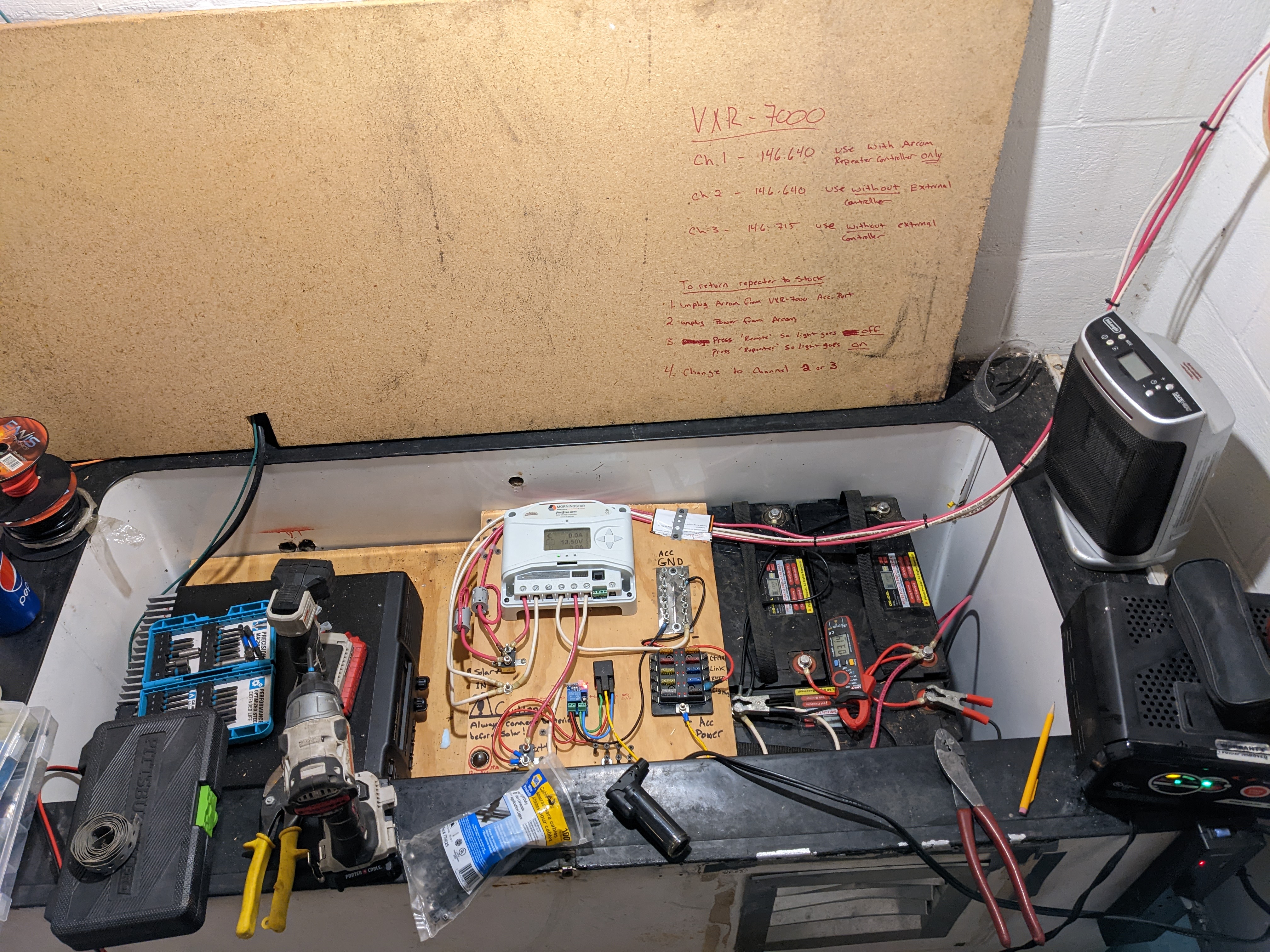

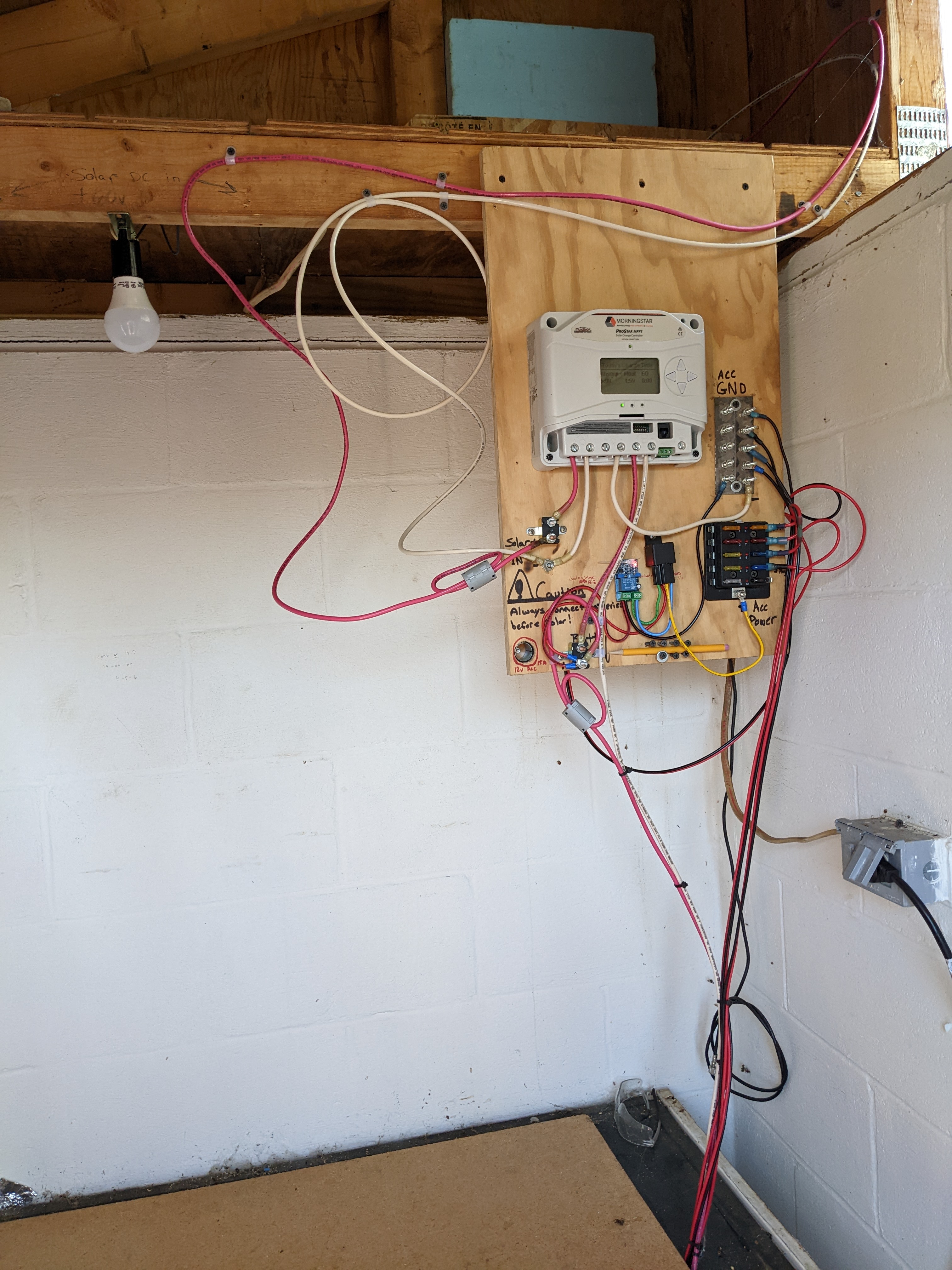

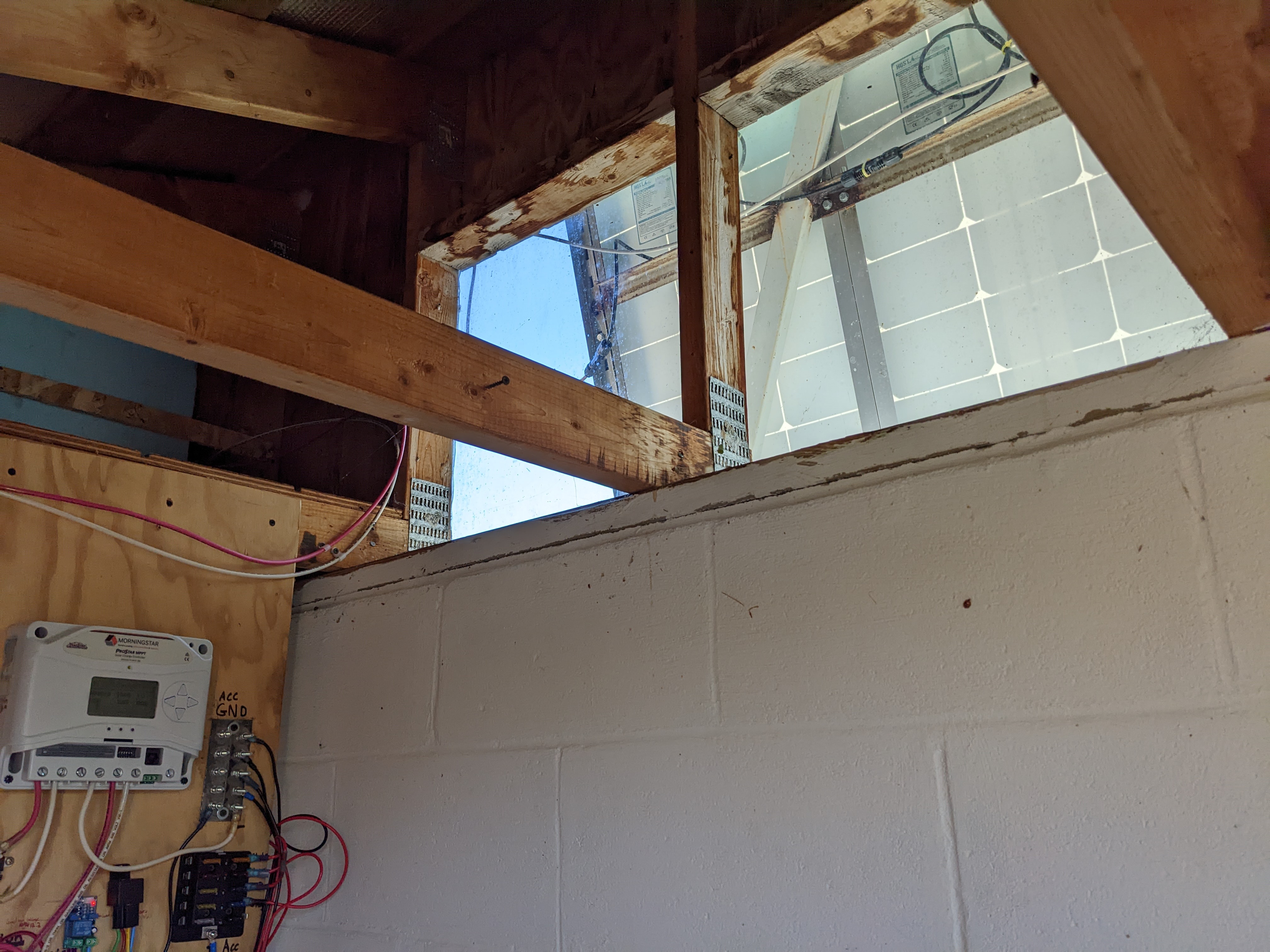

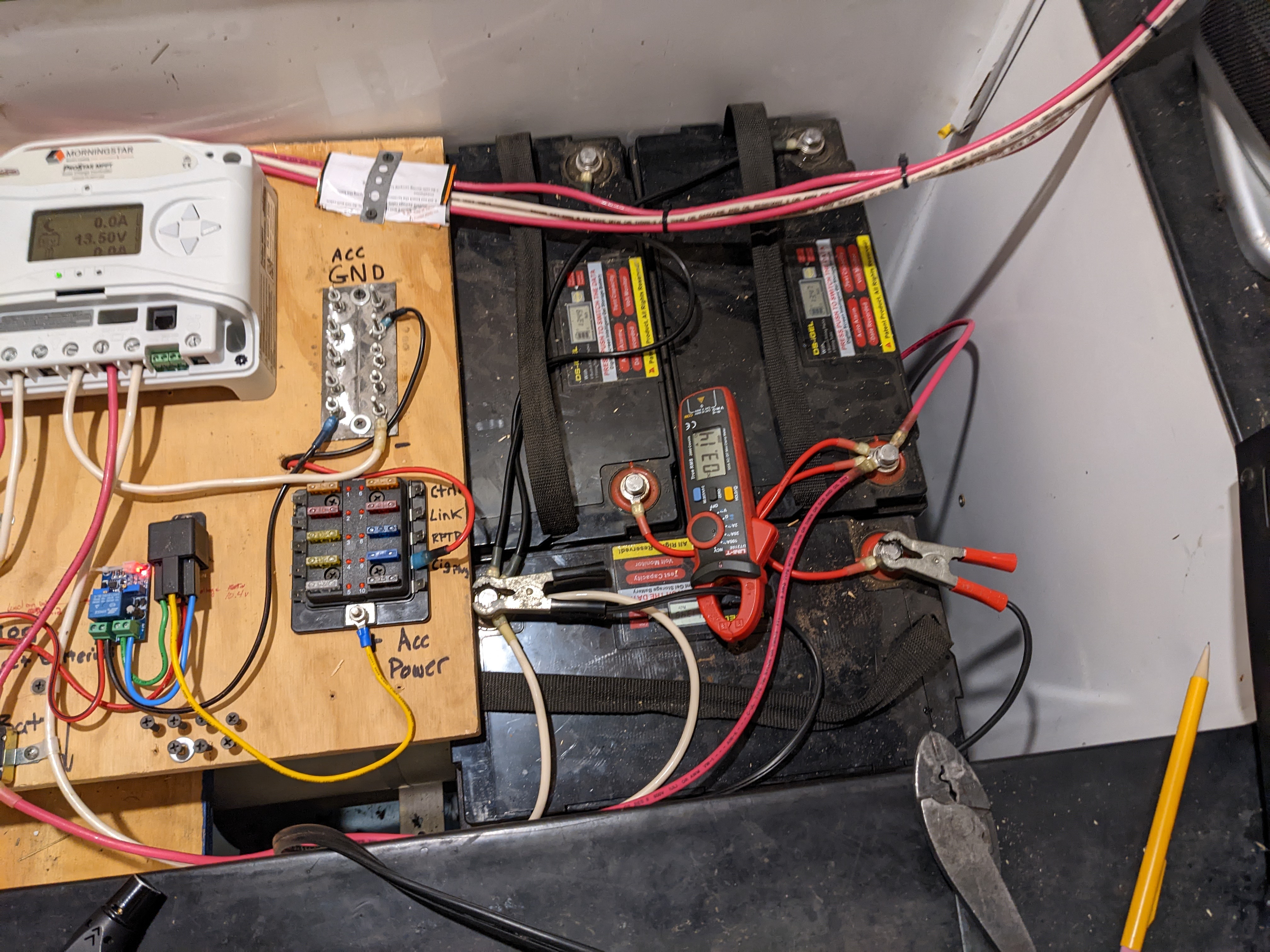

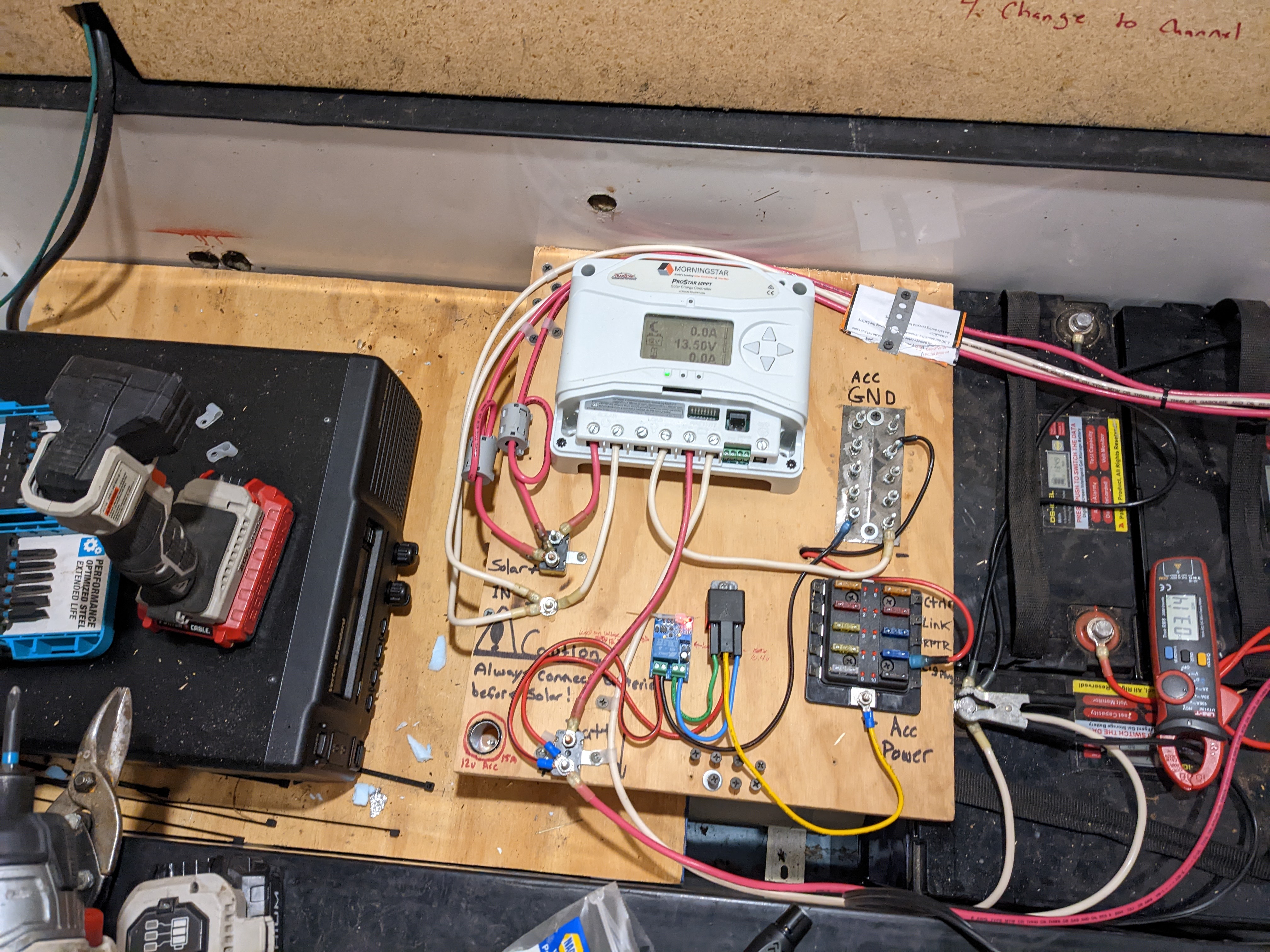

Morningstar MPPT-25 four stage charge controller

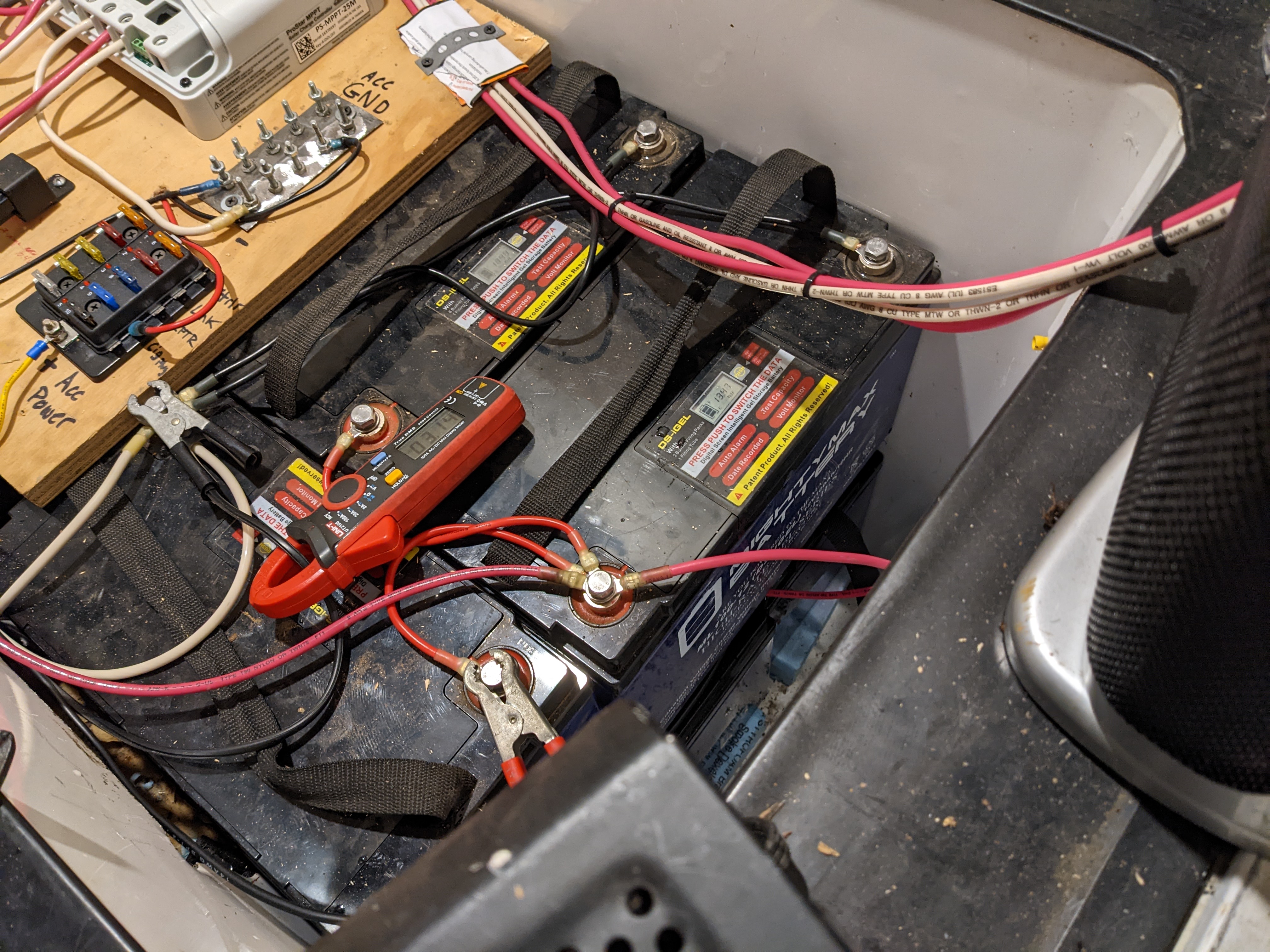

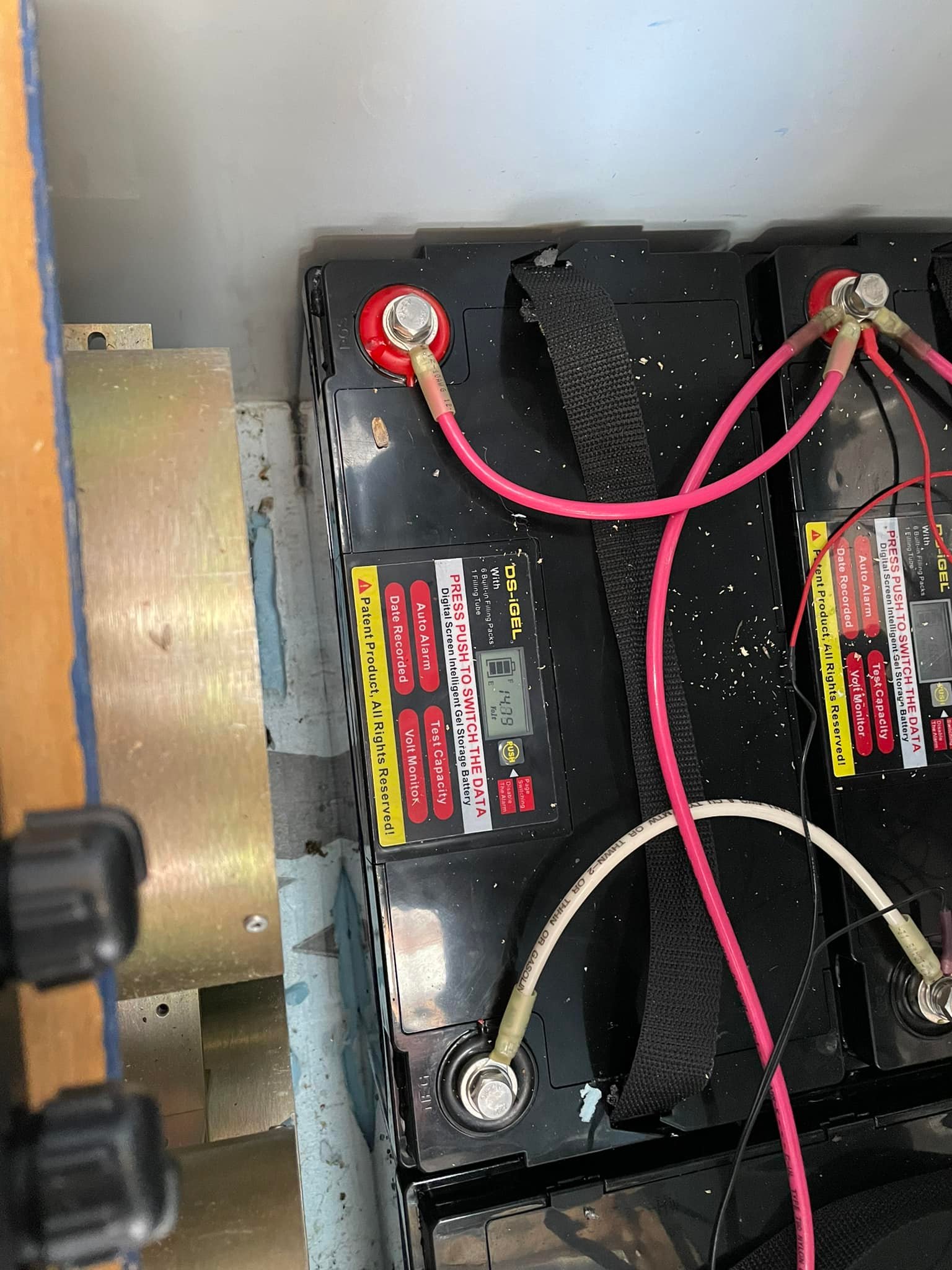

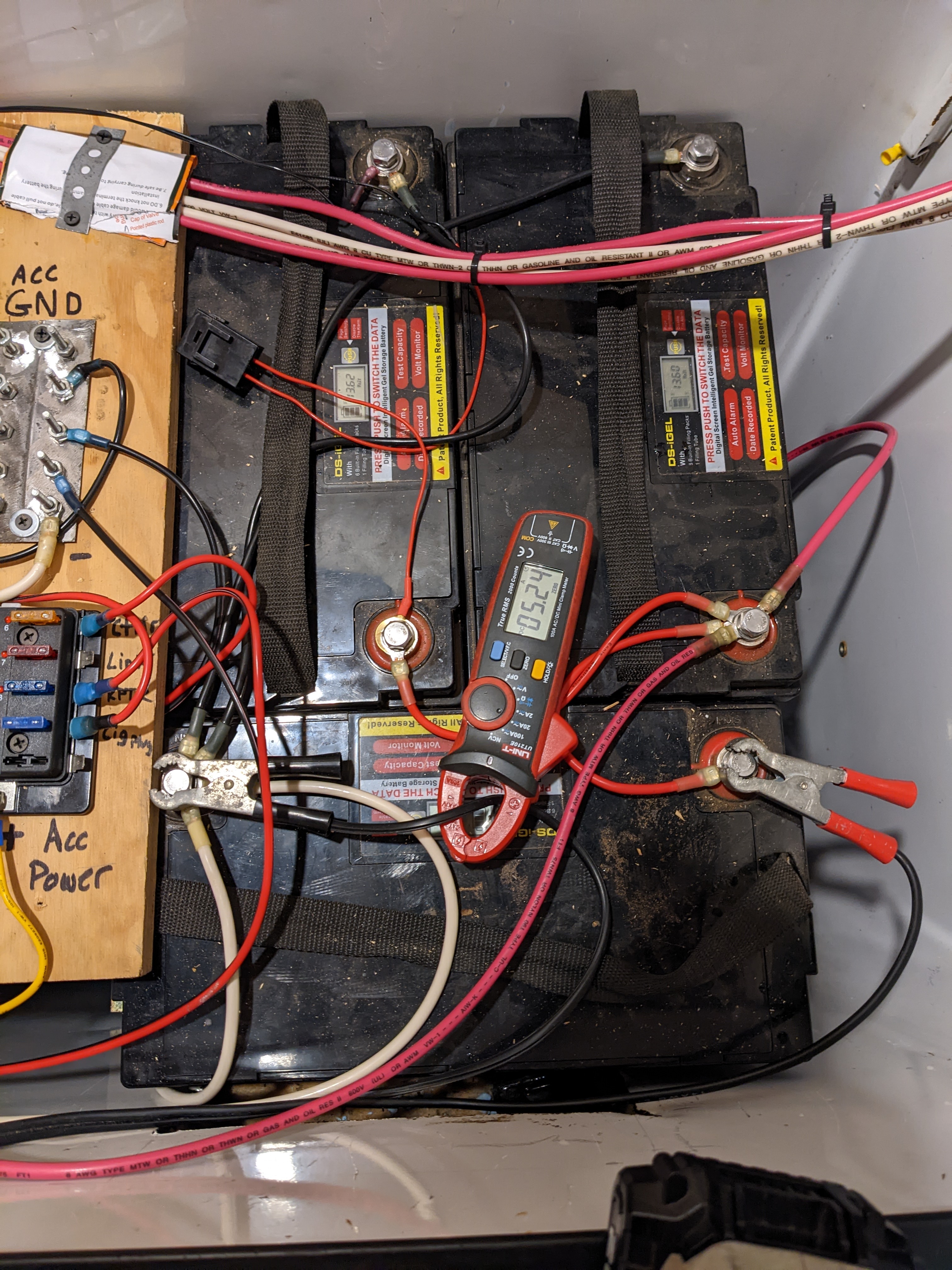

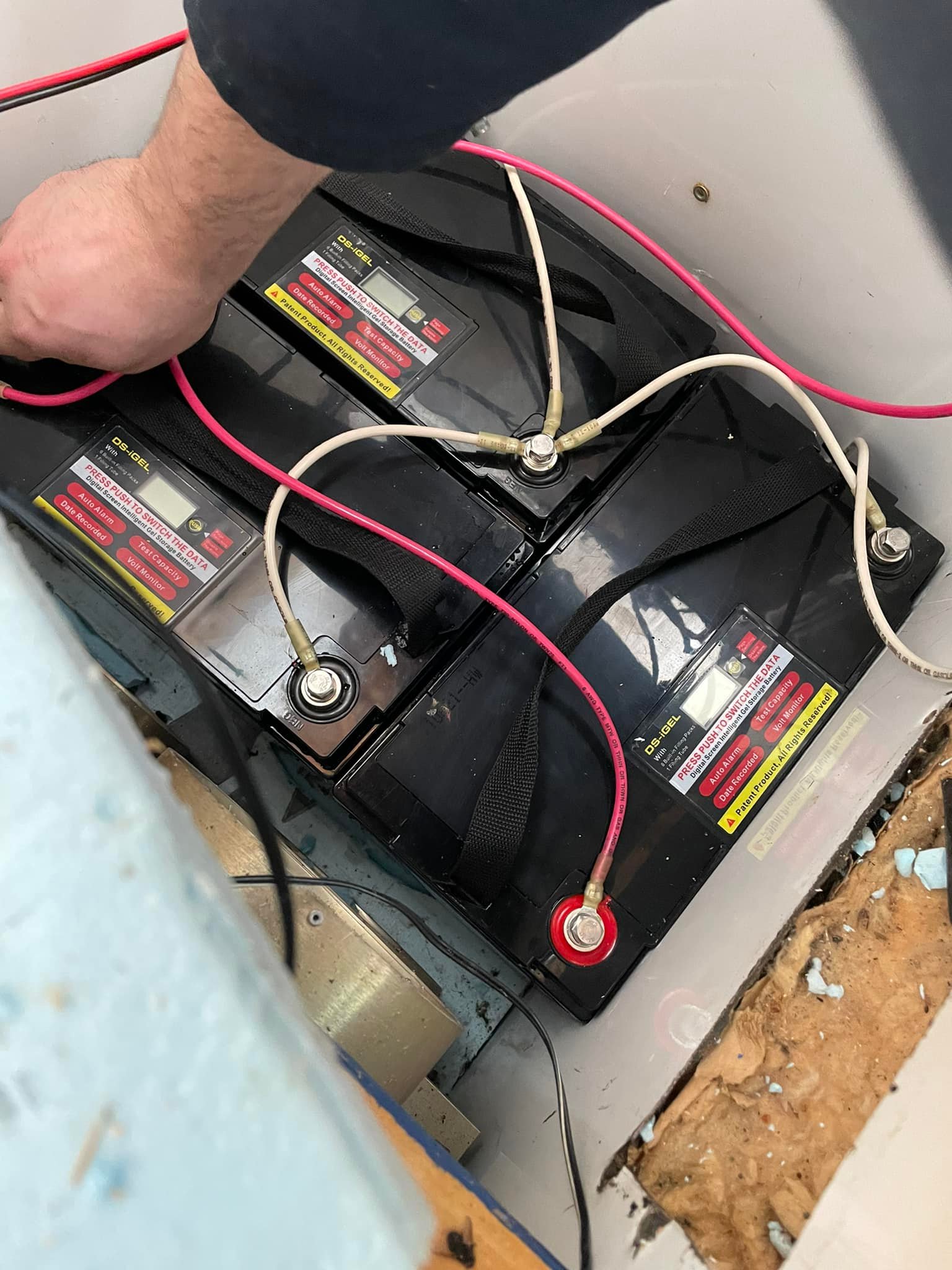

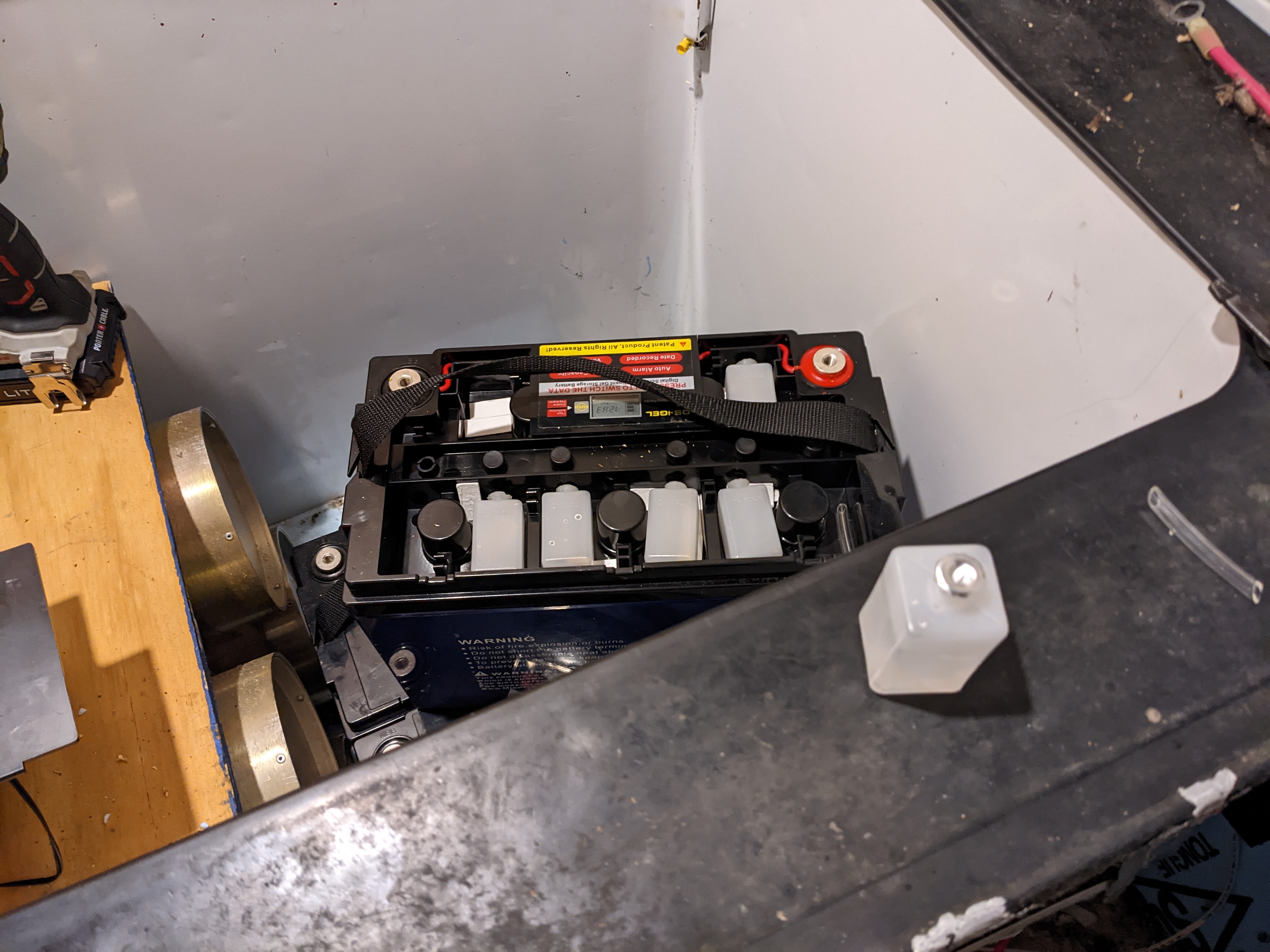

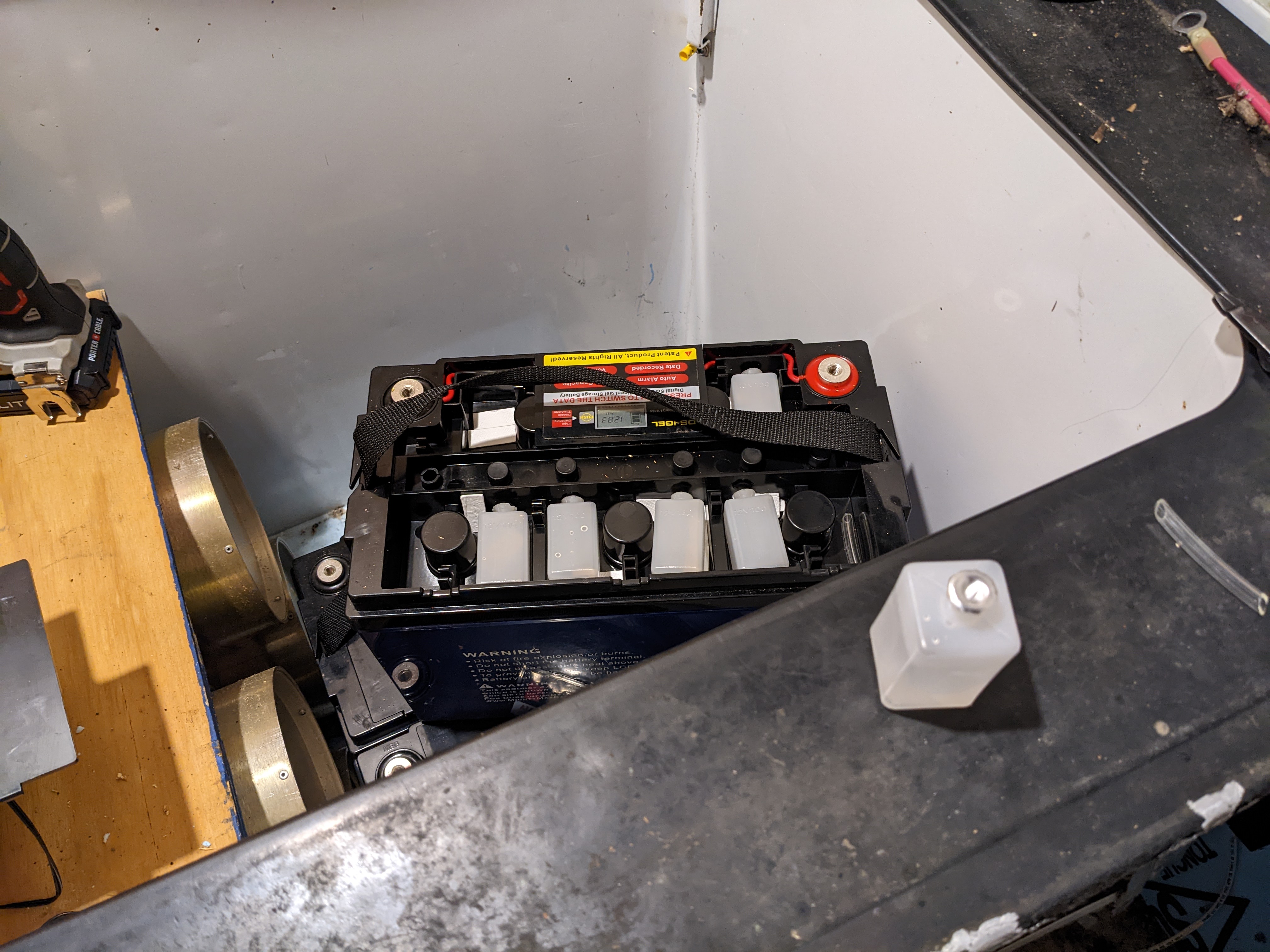

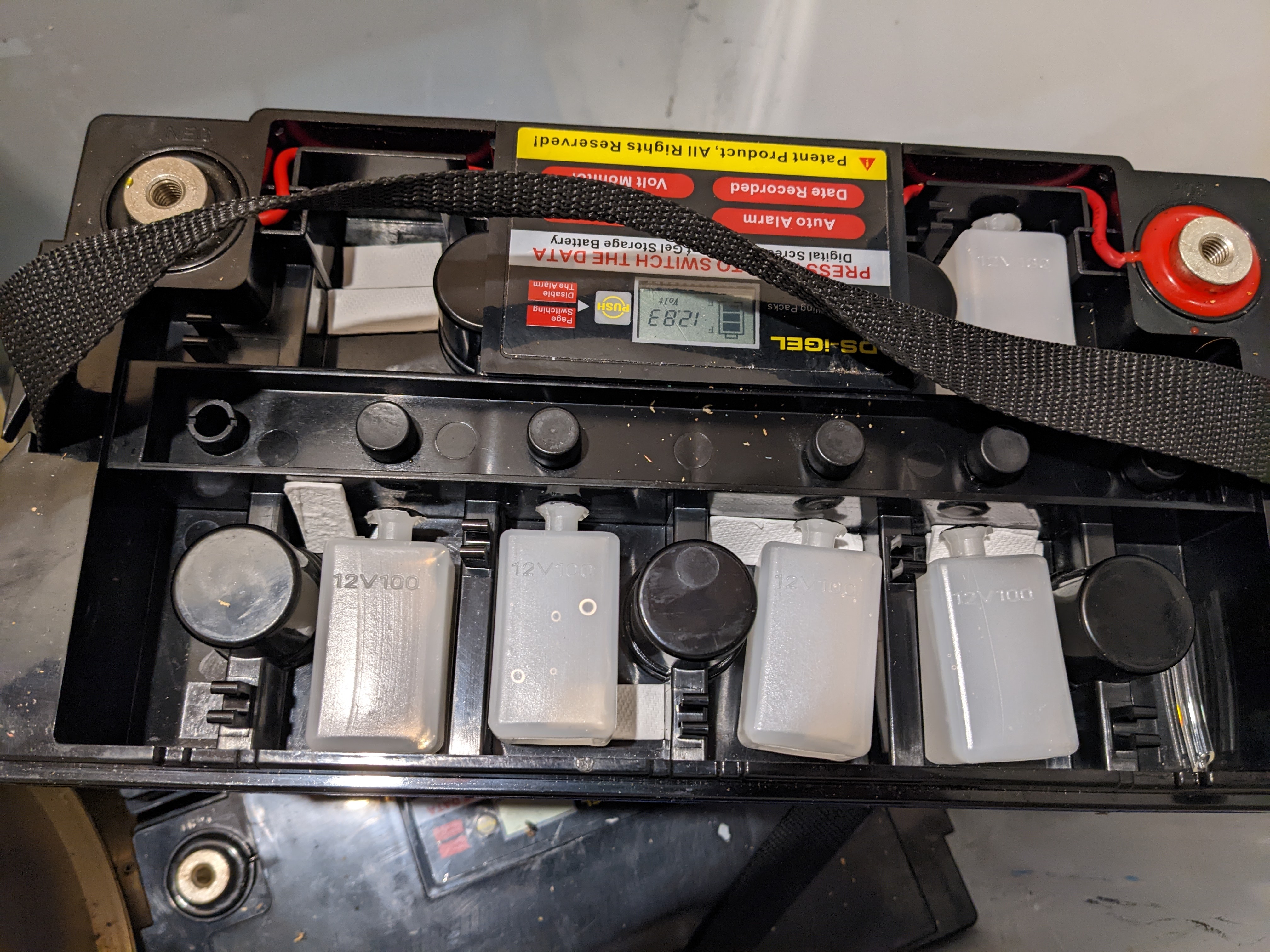

300Ah battery bank
146.715 MHz -600 CTCSS: (Encode/Decode) 100.0
Conventional FM (temporarily offline ETA June ’23)
Location: Eagle Lake, Maine
Connected to 146.640 via UHF link (coming soon)

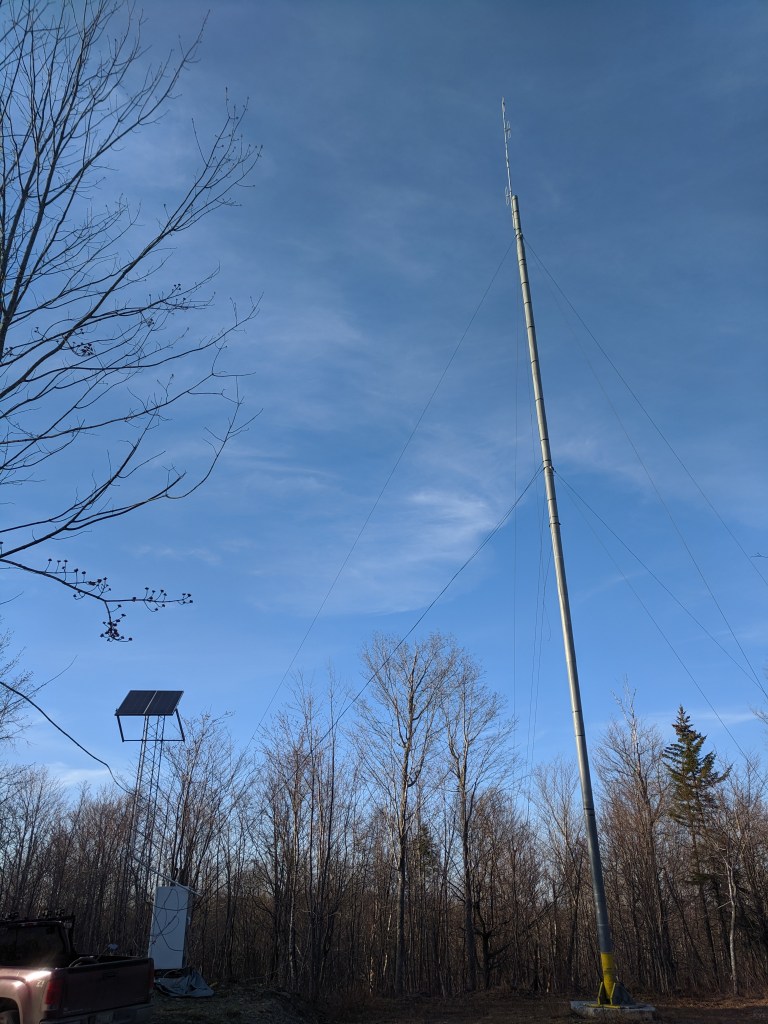

Quad stacked, folded dipole array each at 90° to the next (covers 360 degrees)
100 feet of Times Microwave LMR400
CelWave six cavity duplexer
Vertex VXR-7000 repeater
External Arcom repeater controller
Two 160 watt Renogy panels
CTek D250S five stage charge controller
200Ah battery bank
